Description

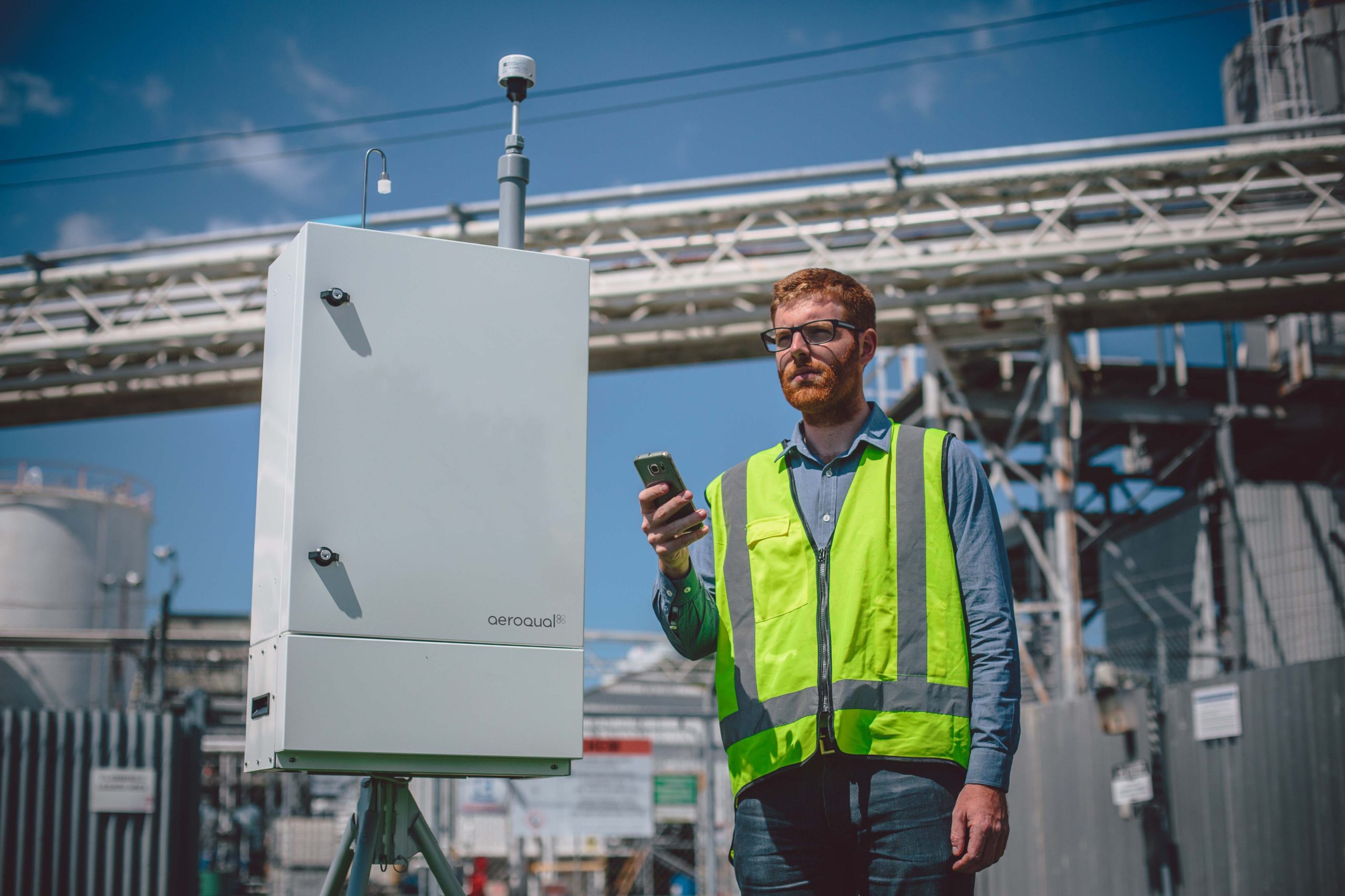

The Aeroqual AQM 65 is a fully integrated, temperature controlled, MCERTS certified air quality monitoring station that delivers near reference levels of performance in real-time for multiple gases, particulate matter and other key environmental parameters. It’s an extraordinary measurement device and one of the best monitors in its class in the industry.
Rugged and reliable, it is designed for environmental professionals who need to monitor and manage multiple particle size fractions simultaneously, in real-time. The unit may be mounted indoors or undercover for monitoring workshops or industrial environments or may be mounted outdoors (as designed) for continuous real-time particulate and air quality monitoring.
The Aeroqual AQM 65 is also capable of collecting a 47mm filter sample for gravimetric analysis (optional) and is able to measure airborne particulates down to 100nm in size, which is lower than many competitive dust monitors on the market are able to measure down to. On the same token, the Aeroqual AGM 65 is capable of measuring particles up to 40um in size.
Aeroqual AQM 65 Measurements
- Simultaneous PM1, PM2.5, PM4, PM10 and TSP dust fraction measurements
- Temperature
- Humidity
- Sound levels
- Wind speed
- Wind direction
- Solar radiation
- CO2 carbon dioxide
- O3 Ozone
- NO2 Nitrogen Dioxide
- CO carbon monoxide
- SO2 sulfur dioxide
- NOX nitrogen oxides
- H2S hydrogen sulfide
- VOC low range
- VOC high range
- CH4 methane
Note: Measurement capabilities and the final system cost vary depending on the system configuration
Key Features
- 100nm to 40um ultra-wide particle size range
- Simultaneous PM1, PM2.5, PM4, PM10 & TSP measurements
- Capable of measuring finer particles of which many dust / particle monitors on the market simply can’t measure
- 0 to 60,000ug/m3 particle mass concentration range (nephelometer sensor)
- 0 to 30,000ug/m3 particle mass concentration range (PCX sensor)
- 0.1ug/m3 display resolution
- Embedded Linux based PC with 32GB SSD for storing 5+ years of measurement data
- Built-in Wi-Fi and Ethernet LAN
- MCERTS certified
- Two way communication for remote troubleshooting, software upgrades and remote calibration
- Auto scheduling of calibrations with optional integrated calibration system
- Variable averaging period from 1 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 hr, 2 hr, 4 hr, 8 hr, 12 hr, 24 hr
- Compatible with a wide range of sensors including noise, black carbon and met sensors
- 47mm filter sample collection for gravimetric analysis
- Provides real-time configurable alerts via email and SMS messaging
- Optional 4G modem with high gain antenna
- Omnidirectional sampling head with heated inlet
- Auto zero on start up and at user selected periods
- Capable of interfacing with many types of environmental sensors including sound level meters
- Factory integrated sensors include wind speed, direction, solar radiation and others
- Pole, tripod or wall mounted
- Lockable IP65 grip cabinet with integrated solar shield and mounting bracket
- -35 to +50 deg C operating range
- Operates of 90 to 264 VAC power
- Optional data collection via the Aeroqual cloud
- Weighs <30Kg
Aeroqual AQM 65 Applications
- Urban networks
- Rural background sites
- Mining companies
- Construction and remediation
- Roadwork, traffic hot spots and tunneling
- Waste management sites
- Welding fumes
- Diesel particulates
- Environmental consultants
- Regulatory authorities
- EH&S managers
- Researchers seeking highly accurate measurement data
- Ports and bulk handling terminals
