Description

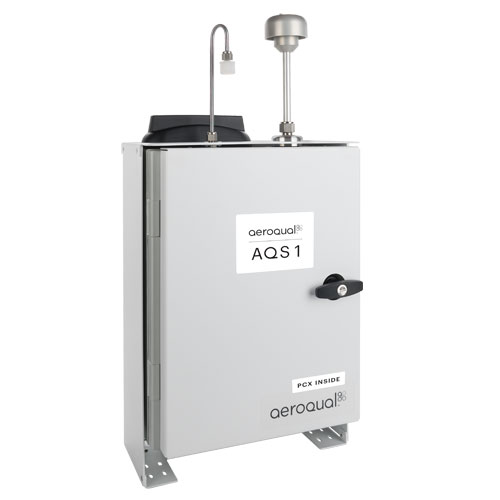

The Aeroqual AQS 1 is designed for environmental professionals who need to monitor and manage specific outdoor dust, particulates, and gases continuously, in real-time. The Aeroqual AQS 1 delivers affordable and defensible measurement of PM1, PM2.5, PM4, PM10, TSP, and up to three gases, O3, NO2, CO, SO2 , H2S, CH4 and VOC all simultaneously. This instrument is a fully MCERTS certified air quality monitoring station that delivers near reference levels of performance in real-time and is one of the best monitors in its class in the industry.

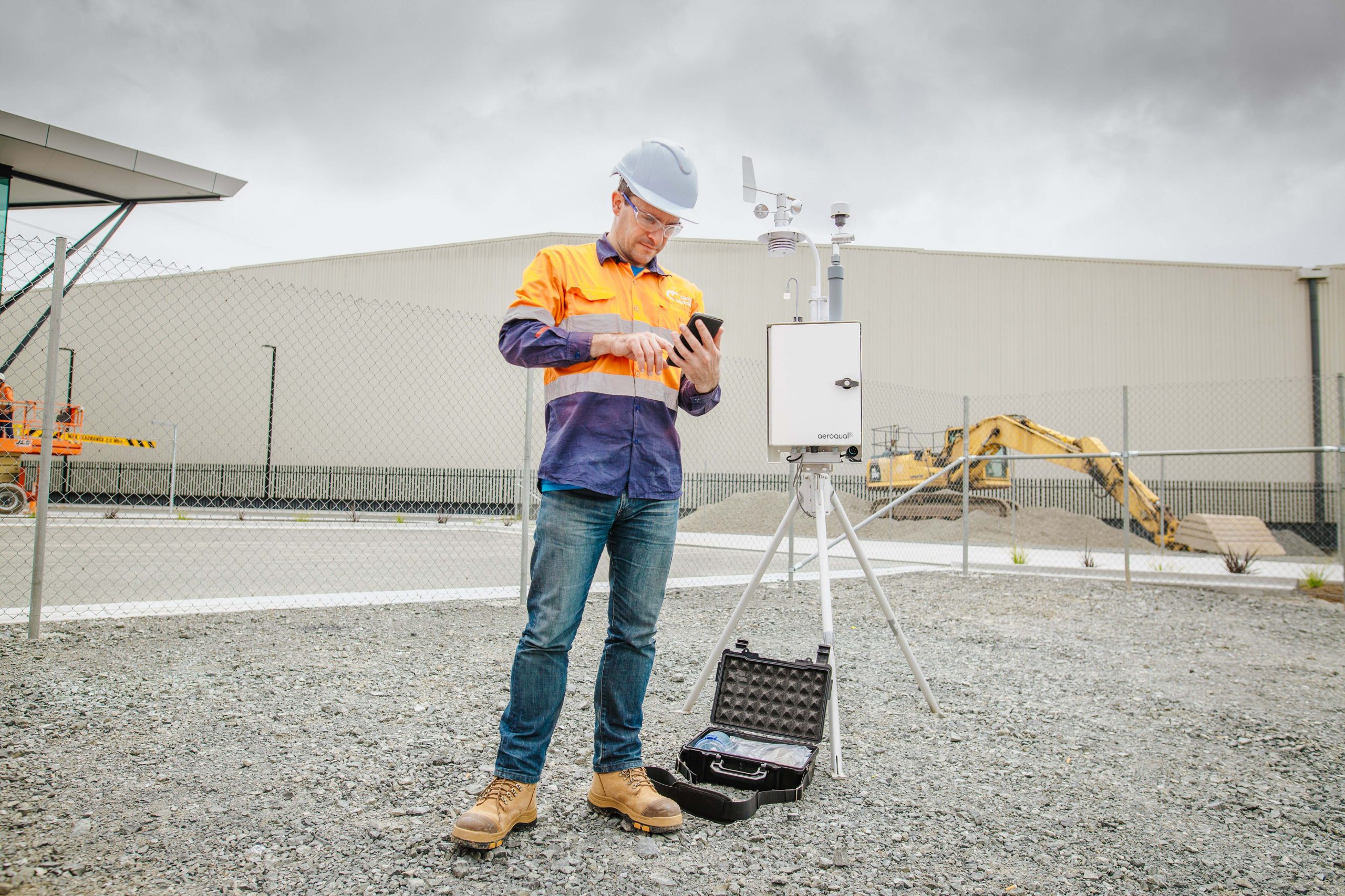

Rugged and reliable, it is designed for environmental professionals who need to monitor and manage multiple particle size fractions simultaneously, in real-time. The unit may be mounted indoors or undercover for monitoring workshops or industrial environments or may be mounted outdoors (as designed) for continuous real-time particulate and air quality monitoring.
The Aeroqual AQS 1 is also capable of measuring particulates down to 100nm in size, which is lower than many competitive dust monitors on the market are able to measure down to. On the same token, the Aeroqual AGS 1 is capable of measuring particles up to 40um in size.
Aeroqual AQS 1 Measurements
- Simultaneous PM1, PM2.5, PM4, PM10 and TSP dust fraction measurements
- Temperature
- Humidity
- Sound level
- Wind speed
- Wind direction
- Solar radiation
- O3 Ozone
- NO2 Nitrogen Dioxide
- CO carbon monoxide
- SO2 sulfur dioxide
- NO2 nitrogen dioxide
- H2S hydrogen sulfide
- VOC
- CH4 methane
Note: Measurement capabilities and the final system cost vary depending on the system configuration
Key Features
- 100nm to 40um ultra-wide particle size range
- Simultaneous PM1, PM2.5, PM4, PM10 & TSP measurements and up to 3 gases and VOC
- Capable of measuring finer particles of which many dust / particle monitors on the market simply can’t measure
- 0 to 60,000ug/m3 particle mass concentration range (nephelometer sensor)
- 0 to 30,000ug/m3 particle mass concentration range (PCX sensor)
- 0.1ug/m3 display resolution
- MCERTS certified
- South Coast AQMD Rule 1466 pre approved
- Embedded PC for storing 5+ years of measurement data
- Built-in Wi-Fi and Ethernet LAN
- Optional 4G modem with high gain antenna
- 0 to 5 VDC analog input, 4 to 20mA input, configurable relay output
- Lockable IP65 GRP cabinet with integrated solar shield
- Pole, tripod and wall mounting brackets are included
- Omnidirectional sampling head with heated inlet
- User selected averaging period from 1 min to 24 hours
- Auto zero on start up and at user selected periods
- Capable of interfacing with many types of environmental sensors including sound level meters
- Long life internal brush-less vacuum pump
- Operates off 100 to 260 VAC or 9 to 36 VDC, batteries or solar panels
- -35 to +45 deg C in field operating range
- Optional data collection via the Aeroqual cloud
- Two way communication for remote troubleshooting, software upgrades and remote calibration
- Weighs <13Kg
Aeroqual AQS 1 Applications
- Urban networks
- Rural background sites
- Mining companies
- Construction and remediation
- Roadwork, traffic hot spots and tunneling
- Waste management sites
- Welding fumes
- Diesel particulates
- Environmental consultants
- Regulatory authorities
- EH&S managers
- Researchers seeking highly accurate measurement data
- Ports and bulk handling terminals
