Description

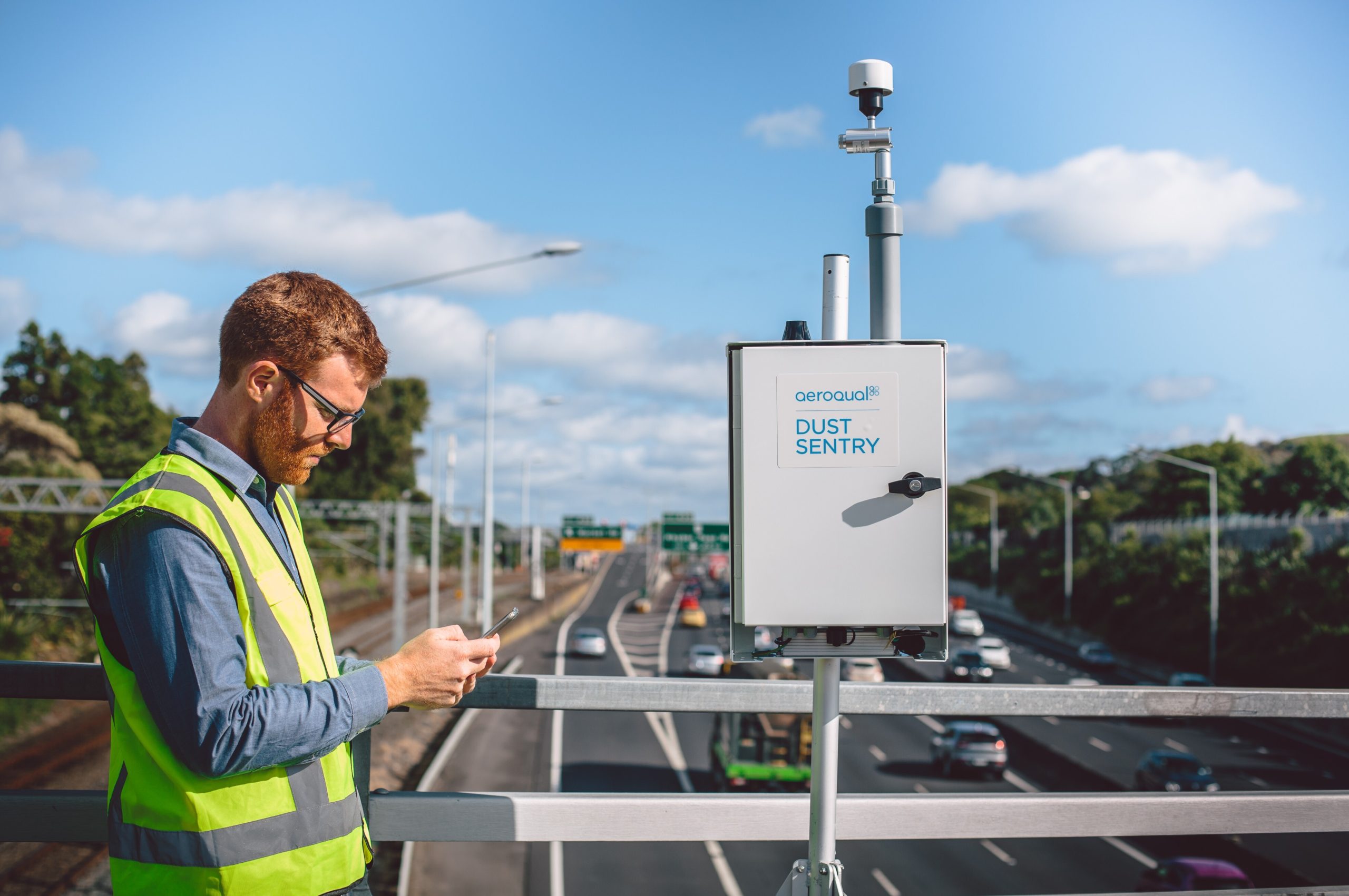

The Aeroqual Dust Sentry is a magnificent example of a well thought out, executed and manufactured real-time particulate monitor. It has to be one of the best monitors in its class that our staff have found in close to 40 years of working in this industry. Rugged and reliable, it is designed for environmental professionals who need to monitor and manage multiple particle size fractions simultaneously, in real-time. The unit may be mounted indoors or undercover for monitoring workshops or industrial environments or may be mounted outdoors (as designed) for continuous real-time particulate monitoring.

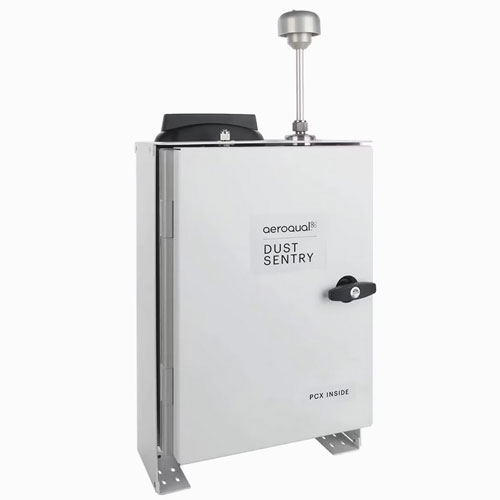

The Aeroqual Dust Sentry is precision near reference real-time monitoring instrument which is MCERTS certified and capable of simultaneous PM1, PM2.5, PM4, PM10 and TSP measurements. It’s also South Coast AQMD 1466 pre approved for PM10 measurements. Capable of measuring aerosols down to 100nm in size its able to measure finer particulates of which many other dust monitors on the market simply cant measure down to. On the same token, the Aeroqual dust sentry is capable of measuring particles up to 40um in size.
Key Features
- 100nm to 40um ultra-wide particle size range
- Simultaneous PM1, PM2.5, PM4, PM10 & TSP measurements
- Capable of measuring finer particles of which many dust / particle monitors on the market simply can’t measure
- 0 to 60,000ug/m3 particle mass concentration range (nephelometer sensor)
- 0 to 30,000ug/m3 particle mass concentration range (PCX sensor)
- 0.1ug/m3 display resolution
- Embedded PC with onboard data storage of 5+ years
- MCERTS certified
- Built-in Wi-Fi and Ethernet LAN
- Optional 4G modem with high gain antenna
- Omnidirectional sampling head with heated inlet
- Auto zero on start up and at user selected periods
- 0 to 5 VDC analog input, 4-20mA input, configurable relay output
- Capable of interfacing with many types of environmental sensors including sound level meters
- Factory integrated sensors include wind speed, direction, solar radiation and others
- Pole, tripod or wall mounted
- Lockable IP65 grip cabinet with integrated solar shield and mounting bracket
- Operates off AC mains, 9 to 36 VDC, batteries or solar panels
- User selected averaging period from 1 minute to 24 hours
- Optional data collection via the Aeroqual cloud
- Weighs 13Kg
Aeroqual Dust Sentry Applications
- Mining companies
- Construction and remediation
- Roadwork, traffic hot spots and tunneling
- Waste management sites
- Welding fumes
- Diesel particulates
- Environmental consultants
- Regulatory authorities
- EH&S managers
- Researchers seeking highly accurate measurement data
- Ports and bulk handling terminals
