Description

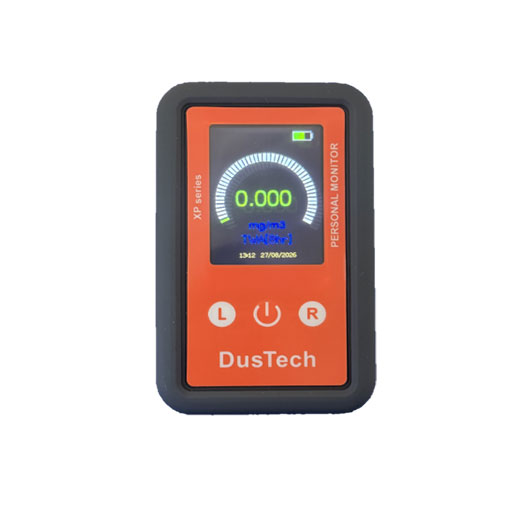

The DusTech XP is a low cost real-time personal dust exposure monitor designed to be clipped onto humans for dust exposure monitoring and data logging. This indicative measurement instrument displays and logs simultaneous PM dust fractions and has built-in Wi-Fi and a web server making it easy to connect with using your phone, laptop or PC. Once connected, you can access the internal menu’s and download your data in CSV format for use in Excel and other popular platforms.
With 20GB of data storage, the DusTech XP can log up to 2 years of data in the field. It’s capable of measuring particle concentrations up to 5mg/m3 and displaying this data with 1ug/m3 resolution. The unit may be easily clipped to personnel via the attached alligator clip and it is capable of 8 hour time weighted average measurements and much more. The internal lithium ion battery is easy charged using the 5 volt, 1 amp charger provided and the unit can operate for typically 11 hours in the field.
Key Features
- Low cost and easy to use

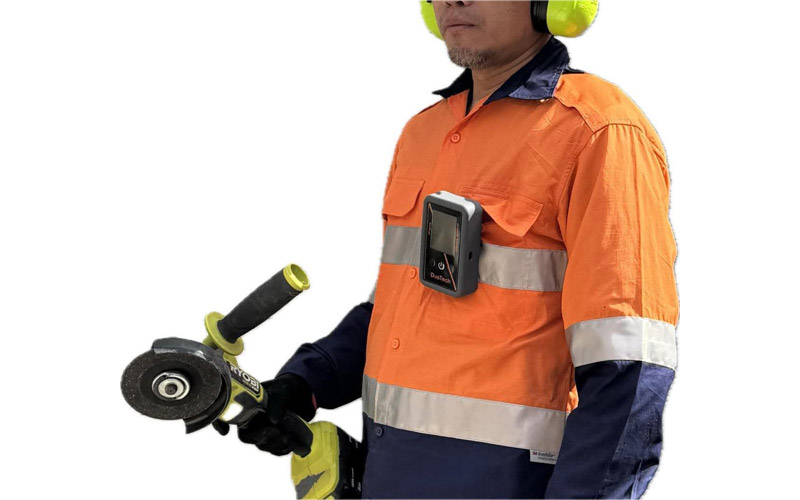

- Designed to be clipped on an individual for personal dust exposure monitoring (1 inch alligator clip)
- Real-time particle measurements
- 0.3um to 10um particle size range
- 0 to 5,000ug/m3 (5mg/m3) dust concentration range
- Dynamic flow rate (variable)
- 1ug/m3 resolution

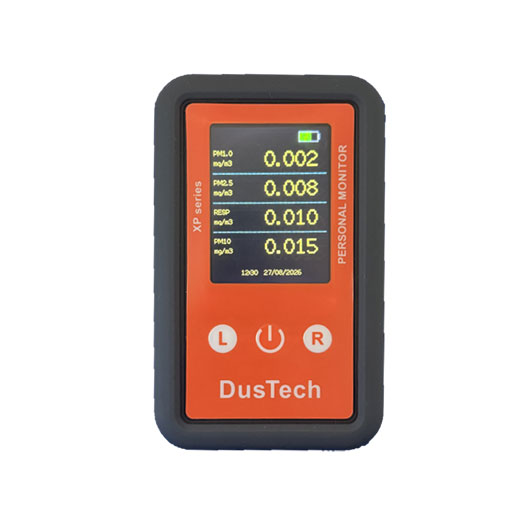

- Simultaneous PM1, PM2.5, respirable & PM10 measurements
- Low cost field replaceable sensors which customers can replace
- 400 million+ data logging points
- 4GB internal memory + 16GB SD data storage. 2 years of onboard data logging
- Built-in WI-FI
- Fast 1 second screen updates
- Fast 1.6 second updates when linked to your mobile phone via Wi-Fi
- Visual alarm (color changing)

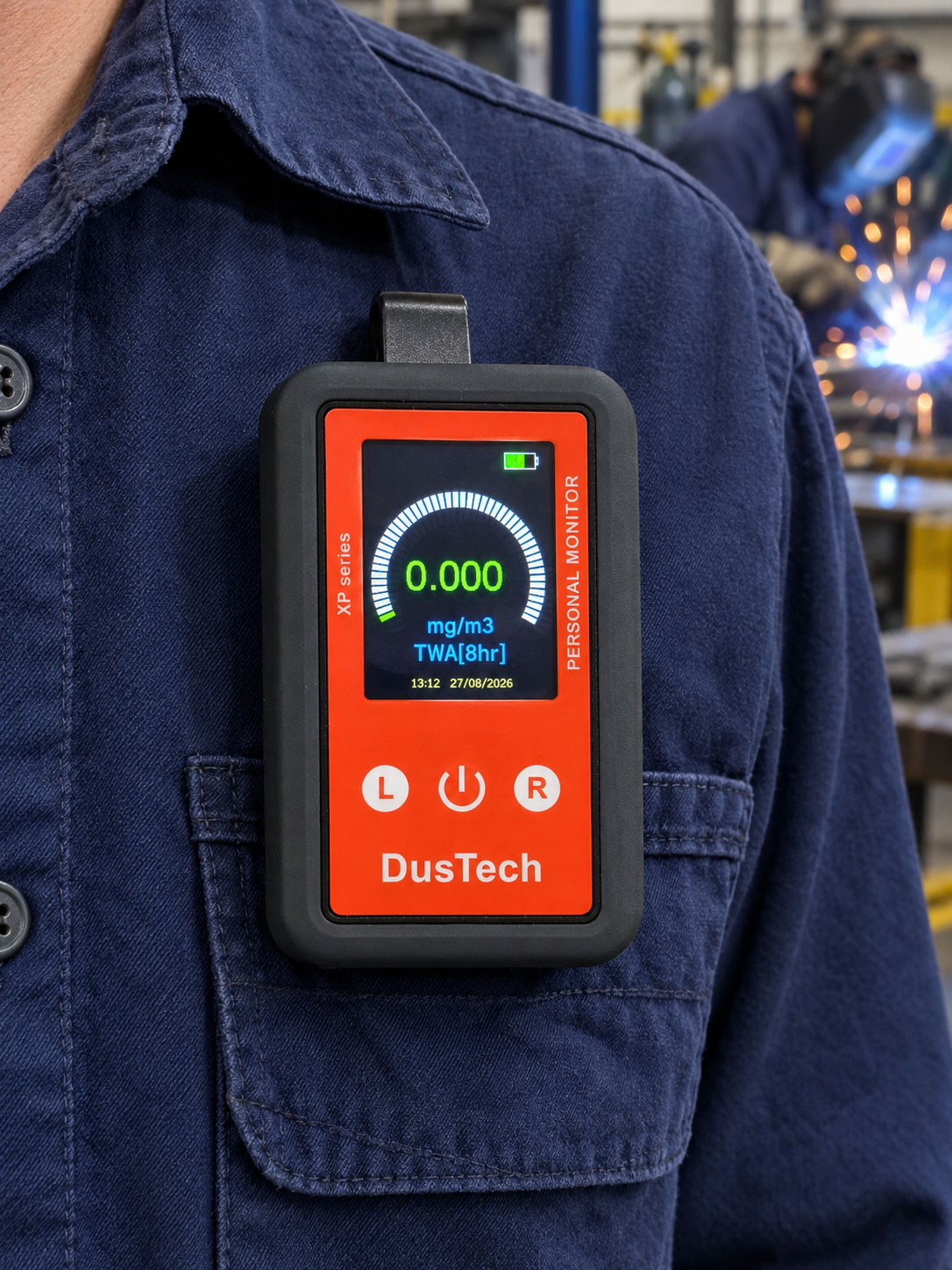

- 8 hours TWA (time weighted average) on the screen, no subscription based apps required
- STEL function
- 2.4 inch TFT color display
- RCS mode (gravimetric correlation factor)
- Built-in web server (no phone app needed), simply connect via Wi-Fi
- Internal re-chargeable lithium-ion battery
- USB C charging with 5 volt 1 amp charger included
- 12+ hours run time, longer then many competitive instruments
- 18 hours run time (power saving mode)
- Includes quick user guide
- Easy data download to CSV file for import into Excel and other programs
- Cloud connectivity option (subscription required)
- 240MHz CPU
- Only 260 grams
- 120 x 74 x 32mm
- 5 unit kits also available
- Fully serviced, supported and calibrated in Australia

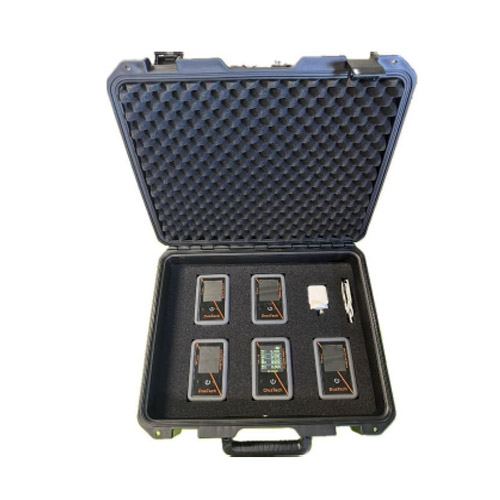

DusTech XP 5 Kit
The DusTech XP also comes in a convenient 5 pack for customers who want larger quantities of these for use on their sites. Alpha Scientific also offers a wide range of portable dust monitors, transportable dust monitors and fixed dust monitoring stations.
DusTech XP Cloud Capability
Connect your DusTech XP to the internet via your mobile phone, site Wi-Fi or optional 4G LTE gateway for real-time cloud based data collection. Optional subscription required.
