Description

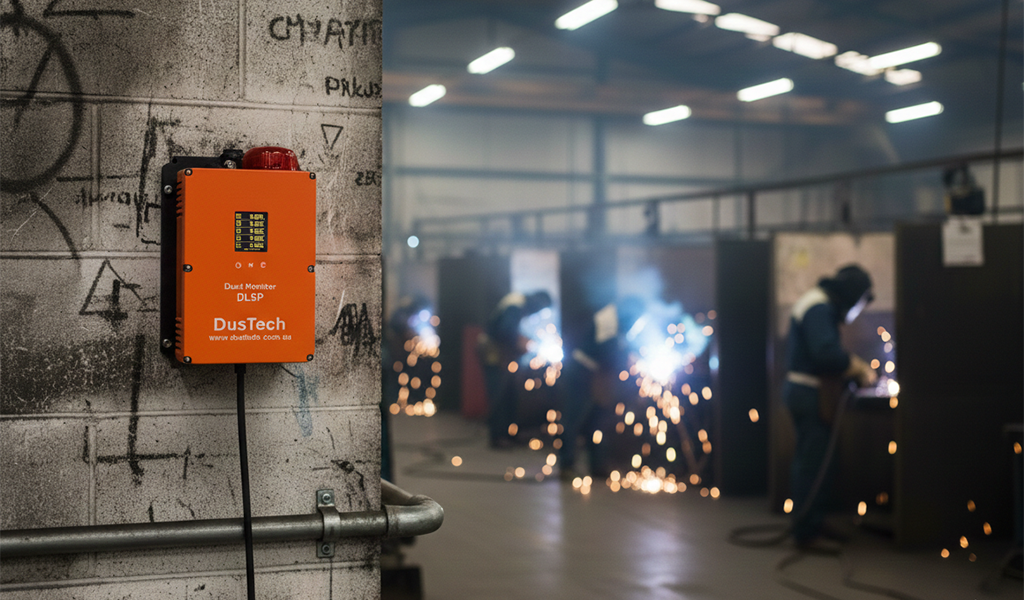

The DusTech XPL DL5P is an affordable, yet reliable fixed particulate monitor designed to be mounted on walls, in workshops, buildings, factories, museums and any indoor & outdoor environment. Operating off 12 VDC and with a 240 VAC plug pack included, this premium grade sensor continuously monitors and data logs particulate levels in your environment for up to 2 years. The DusTech XPL DL5P is capable of simultaneous PM1, PM2.5, PM4.25, PM10 and TSP measurements while additionally being able to display particle counts and size.
The user may log onto the device directly via the built-in Wi-Fi and web server interface or may purchase an optional cloud based subscription for 24/7 remote monitoring, email based alarm notifications and access to your data anywhere. With 400 million+ points of onboard data logging, this unit also features a built-in alarm beacon which is activated when a (user selected) alarm limit is reached, visually notifying any staff in the vicinity as to the high particulate levels in the air.
What it Measures
- Simultaneous real-time PM1, PM2.5, PM4.25, PM10 and TSP dust mass fractions
- Particle counts, 5 channels from 0.35um to 40um
- Particle size (0.3um>, 0.5um>, 1.0um>, 2.5um>, 5um>)
Key Features
- 0.35um to 40um particle size range
- 0 to 30,000 ug/m3 dust concentration range
- 1 LPM flow rate
- 1ug/m3 resolution
- 1ug/m3 detection limit
- 1 second sampling frequency
- Built-in WI-FI
- 400 million+ point internal data logging (over 2 years of logging)
- Onboard multi-channel real-time display
- Built-in web server for local data download and configuration
- Built-in visual alarm beacon to alert staff in the vicinity
- 8 hour TWA (time weighted average) display
- The latest optical particle counting technology
- Optional cloud based data subscription service, remote EMAIL alerts and data download
- Low power consumption, 12 VDC, 8 watts
- 0 to 50 deg C operating temperature
- 0 to 95% operating humidity

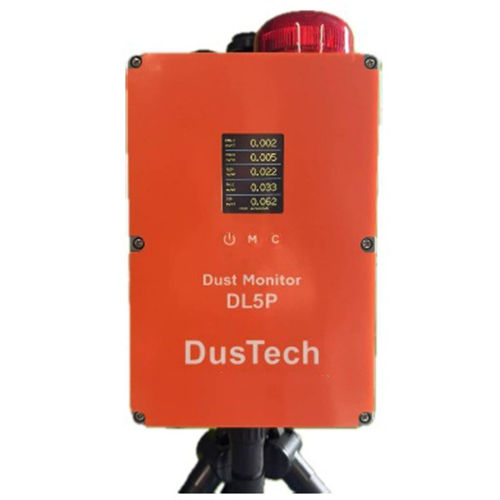

DusTech XPL DL5P
It’s simple, its easy to install and use and this device allows the user to monitor and log their data locally or via a cloud based subscription. The built in colored alarm beacon is very handy and is particularly useful in industrial environments where staff cant always hear audible alarms. The DusTech XPL DL5P is one instrument in a wide range of dust monitoring instruments available from Alpha Scientific. For further information, feel free to contact us.
