Description

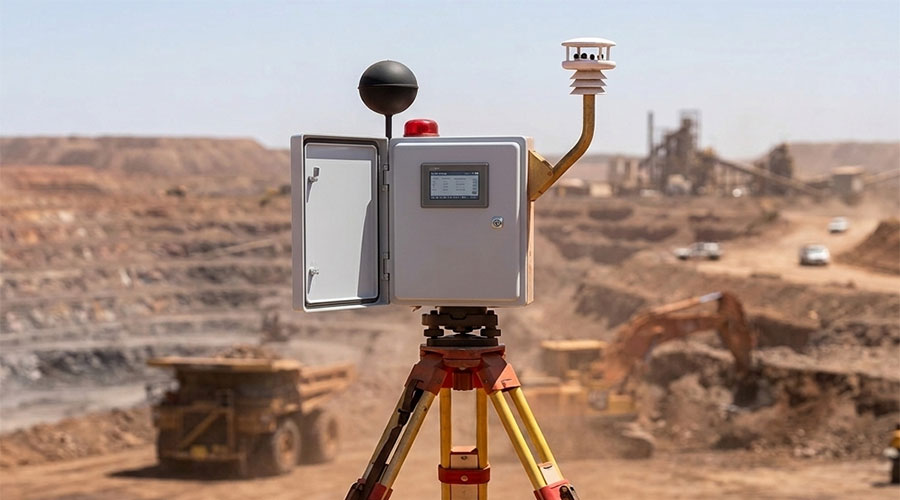

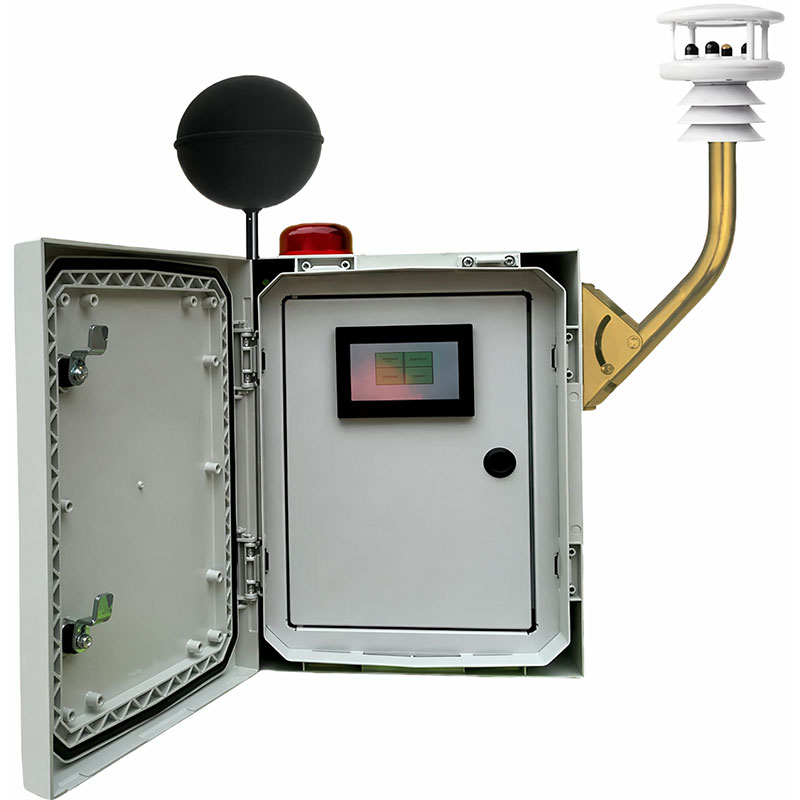

The DusTech XPS is a highly flexible dust and air quality monitoring station designed for use on a transportable tripod and or for being fixed in permanent monitoring locations. This unit is modular by design and may be built up and or configured to meet customers individual needs. It’s capable of measuring simultaneous PM dust fractions, up to 8 gases, wind speed, wind direction, temperature, humidity, sound pressure and other environmental parameters.
The DusTech XPS operates off 12 or 24 VDC and draws only 12 watts. The unit may be easily connected to existing solar panel systems or a solar panel system and battery setup may be quoted. This unit is fully serviced, supported and calibrated in Australia and also features interchangeable sensors where customers can purchase spare calibrated sensors and swap these in and out onsite while their other sensors are sent away for local calibration. This negates the need to remove your entire station and send this away to suppliers for calibration annually. Onsite calibration is also available as an optional service.
What it Measures
- Simultaneous real-time PM1, PM2.5, PM4.25, PM10 and TSP measurements
- Up to 8 gases (CO, CO2, SO2, H2S, VOC, LEL, NO, NO2 & 02)
- Heat stress
- Temperature (-40 to 60 degrees C)
- Relative humidity (0 to 100%)
- Wind speed (0 to 60 m/s)
- Wind direction (0 to 360 degrees)
- Atmospheric pressure (300 to 1100hPa)
- Globe temperature (0 to 60 degrees)
- Sound pressure (noise)
Key Features
- 0.35um to 40um particle size range
- 0 to 30,000 ug/m3 dust concentration range
- 1.2 LPM flow rate
- 1ug/m3 resolution
- 1 second sample frequency
- Modbus TCP/IP & Modbus RTU communications
- FTP, MQTT, MQTTs upload protocols
- 12 or 24 VDC powered for easy connection to solar panels and batteries
- Built-in Ethernet LAN, WI-FI & 4G cellular communications
- Built in display
- Built-in touch screen for gravimetric correction factor entry, maintenance and calibration
- Built-in web server (no app needed), simply connect via Wi-Fi
- 4GB internal memory + 16GB SD data storage
- 2 years of internal data logging
- Onboard audible & visual alarms
- Easy data download to CSV file for import into Excel and other programs
- Remote support via Team Viewer
- Optional web based data subscription service
- 3 classifications of alerts via SMS and / or via e-mails
- Data download and automatic report generation using the Dustech Dashboard
- Optional solar panel kits
- Many other advanced features
DusTech XPS Optional Solar Kit
An optional solar panel and battery kit is also available for the DusTech XPS. This includes a weatherproof hard case with wheels including all internal cabling / fuses / regulators / charge controller, secure cable for power, solar panels 100Ah LiFePo4 battery (Low weight, high capacity) of which one person can easily install.
