Description

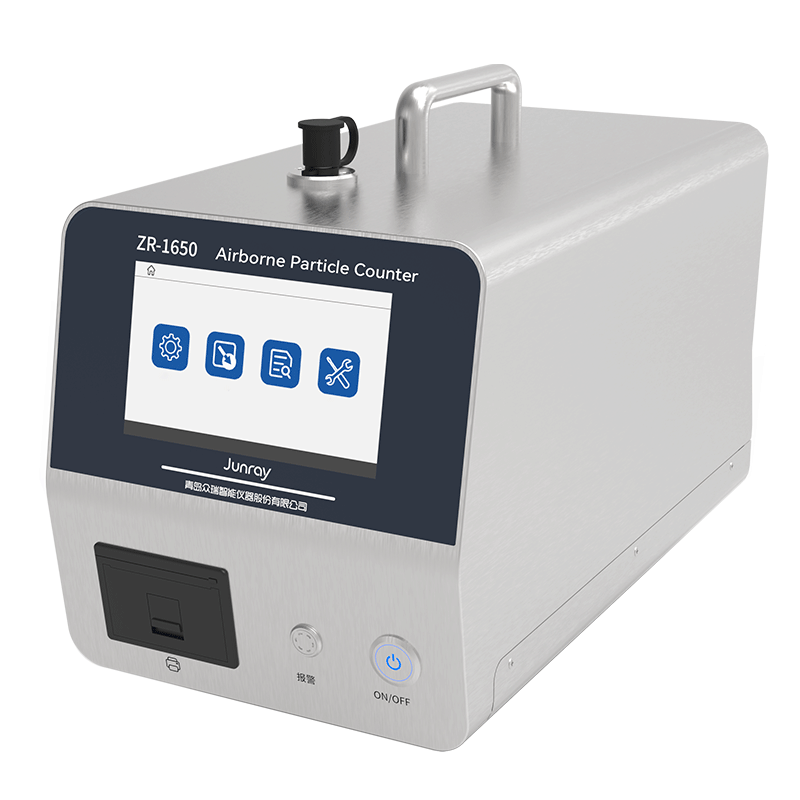

The Junray ZR-1650 is a high quality, low cost portable optical particle counter which is capable of measuring particulates down to 0.1um in size. Operating at 28.3 LPM and with 9 particle size channels ranging from 0.1um to 5um this unit may be used to for monitoring cleanrooms and controlled environments, filter testing and for measuring particles in compressed air and gases in accordance with ISO 8573 and other global standards. The Junray ZR-1650 features a built-in HEPA filtered exhaust, 8GB of data storage, 7 inch color touch screen display, incorporates a stainless steel enclosure and other key features sought after by customers. Junray is a fully ISO 17025 accredited global particle instrument manufacturer who also manufactures aerosol photometers and many other popular particle instruments.
Key Features
- 0.1um to 10um particle size range
- 9 particle size channels (0.1um, 0.15um, 0.25um, 0.2um, 0.25um, 0.3um, 0.5um, 1.0um and 5.0um)
- 28.3 LPM flow rate
- Built-in long-life vacuum pump, designed for continuous use with HEPA filtered exhaust
- High-quality cleanable stainless-steel enclosure versus plastic on some competitive instruments
- Automatic zero count without the need to plugin an external HEPA filter
- Built-in thermal printer
- Latest generation long-life laser diode technology
- 8GB of data storage (100,000 groups) of data
- Large 7 inch color touch screen display
- 3 level user management and audit tracing to ensure data integrity
- Ambient temperature, humidity and atmospheric pressure measurements can be recorded during the testing
- Capable of meeting the requirements as per ISO 8573 for testing compressed air and gases (optional HPD also required)
- USB communications
- Built-in audible / visual alarms
- 4 hour+ battery life
- Modern, compact, easy to use
- Fully ISO14644, ISO21501-4 and 21CFR-11 compliant
- Calibration certificate included
The Junray ZR-1650 is also suitable for semiconductor applications where customers require particle measurements down to 0.um in size.
