Description

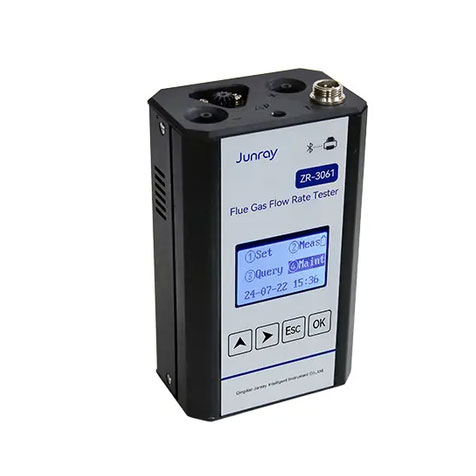

The Junray ZR-3061 is a handheld precision flue gas flow rate tester used to measure the flue gas flow rate, flow, dynamic pressure, static pressure, temperature and other parameters of stationary pollution sources such as boilers and furnace stacks. It uses a high-precision differential-pressure sensor, with a Pitot tube used to obtain the pressure difference associated with gas velocity. This instrument is high quality, easy to use and incorporates a rechargeable lithium-ion battery which lasts for more than 24 hours of continuous use.
The Junray ZR-3061 is also particularly useful when doing stack testing, where you need the gas velocity / flow conditions alongside particulate or gaseous-emission sampling.

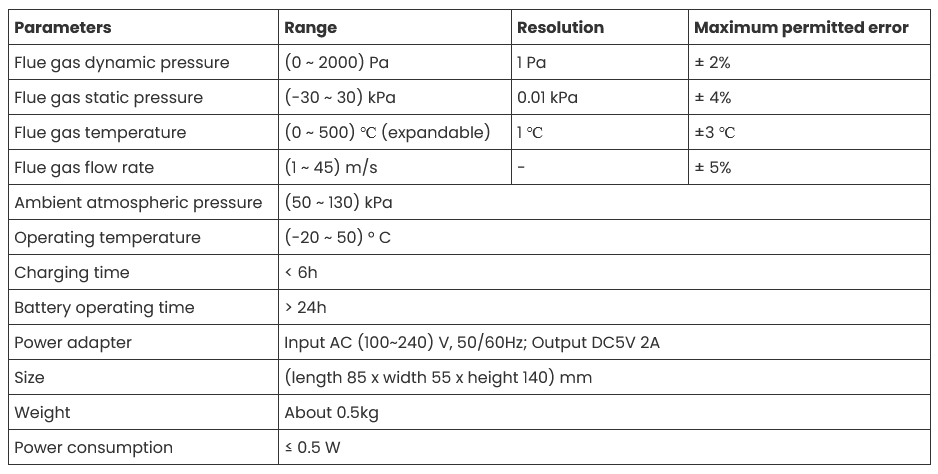

Key Features
- Lightweight
- LCD display, English menu operation
- Light, portable, and easy to operate
- Flue gas dynamic pressure (0 ~ 2000) Pa
- Flue gas static pressure (-30 ~ 30) kPa
- Flue gas temperature (0 ~ 500) ℃ (expandable)
- Flue gas flow rate (1 ~ 45) m/s
- Size (length 85 x width 55 x height 140) mm
- Weight About 500 grams
- Power consumption ≤ 0.5 W
- Optional Bluetooth printer
High Test Efficiency
- Imported high-precision micro-differential pressure sensor: high precision, and small temperature drift
- Calculate the average flow rate, average pressure, flue gas flow and other parameters automatically
- Automatic zero correction and software calibration functions to ensure the measurement accuracy
Long battery life
- Built-in lithium-ion rechargeable battery: can be used continuously for more than 24 hours
- Can save 200 groups of measurement data without lost after shutdown
