Description
The Junray ZR-6012 is a state-of-the-art latest generation aerosol photometer designed for filter testing professionals. It offers features and performance beyond the capabilities of many other photometers on the market.

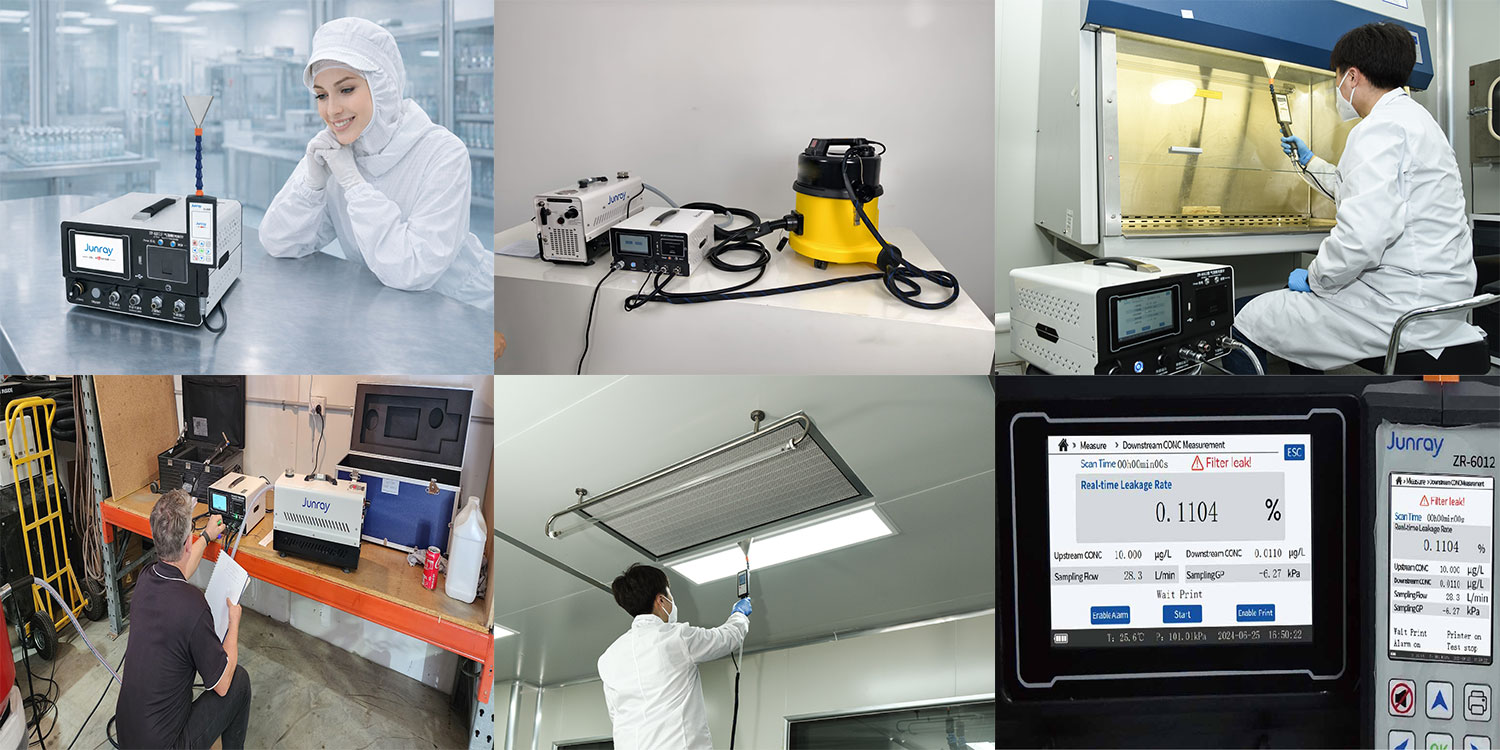

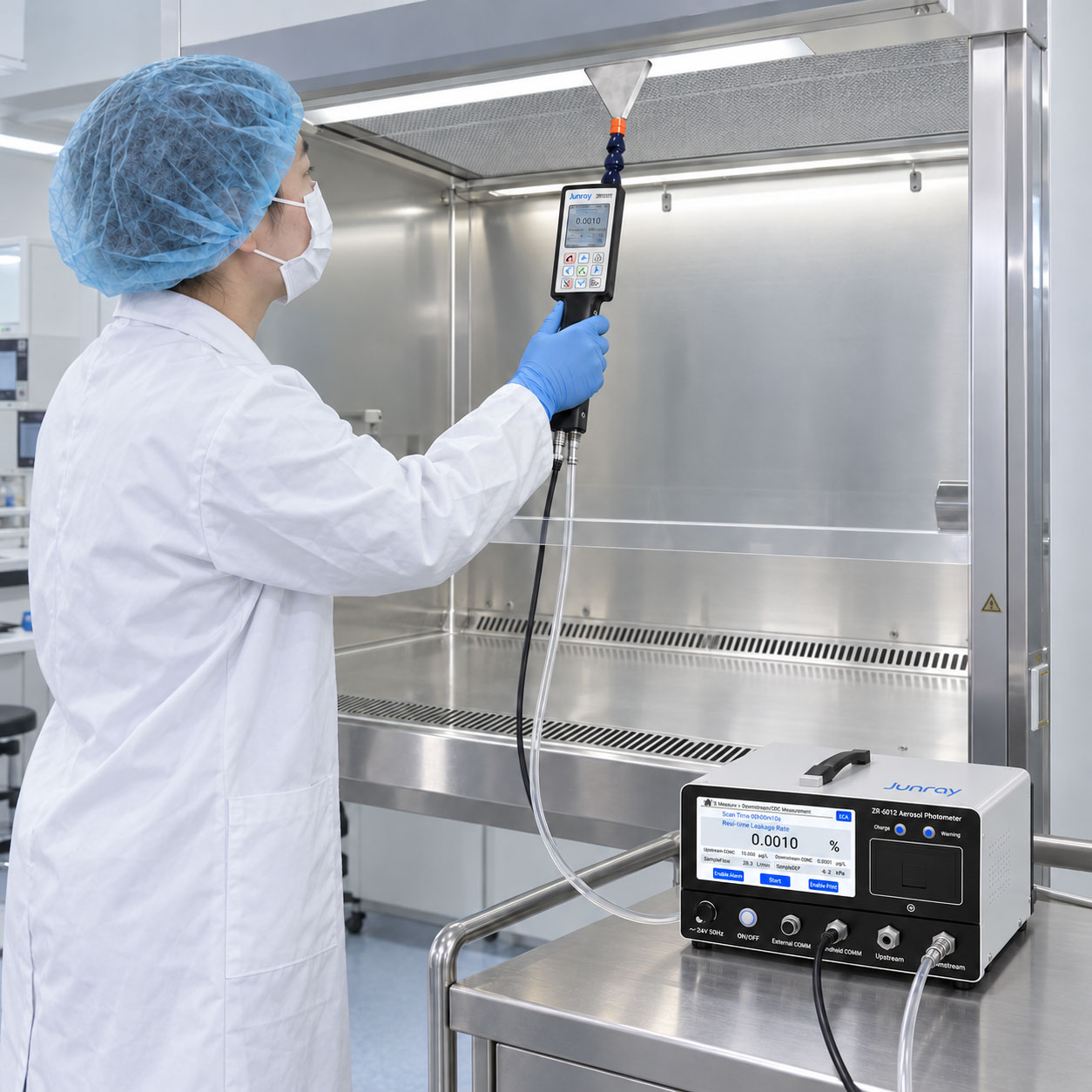

The Junray ZR-6012 may be used in many different industry applications including testing HEPA filters in cleanrooms and controlled environments, testing H class vacuum cleaner filters, negative pressure units (NPU’s) and in many other areas. This unit is also fully compliant with the latest AS 1807:2021 and ISO 14644-3:2021 standards and they are fully serviced and NATA calibrated in Australia.
Key Features
- 28.3 LPM flow rate
- Impressive +/- 2.5% flow accuracy
- Precision: 1% of the value in the range of 0.01% to 100%
- Wide 0.0001ug/L to 700 ug/L dynamic measurement range
- 0.0001% to 100% leakage detection
- Upstream aerosol mass concentrations are displayed in actual micro grams per liter (ug/l)
- Long life laser diode technology
- Highly accurate, stable and reliable measurements
- Large 5-inch color touch screen display
- 0.5% of reading repeatability
- Built-in lithium-ion battery with 4 hours run time for true portability
- Built in thermal printer for instant results
- 100,000 groups of onboard data storage saving data in real-time
- Supports system upgrade or data export via USB flash drive
- Light, vibration and voice alarms when you exceed the set value
- Supports PAO, DOP and various other oils
- HEPA filtered exhaust
- May be used both vertically and horizontally unlike some competitive devices
- Error detection, automatically protecting the instrument
- Rugged transit cases are included for any photometer and aerosol generator that is purchased
- User permission assignment capabilities
- Three-level user management and audit trails to ensure data integrity (21 CFR part 11 compliance)
- Includes an ILAC-CNAS calibration certificate (equivalent of NATA in Australia)
- Many other advanced features
- Fully serviced, supported and calibrated in Australia
- Optional NATA / ISO 17025 accredited calibration in Australia
Applicable Standards
- AS 1807:2021
- ISO 14644-3
- GB 50591-2010
- NSF/ANSI 49-2024
- BS EN 12469:2000
- IEST-RP-CC034
- JJF 1800-2020
- JJF 1815-2020
- AS / NZS 60335.2.69

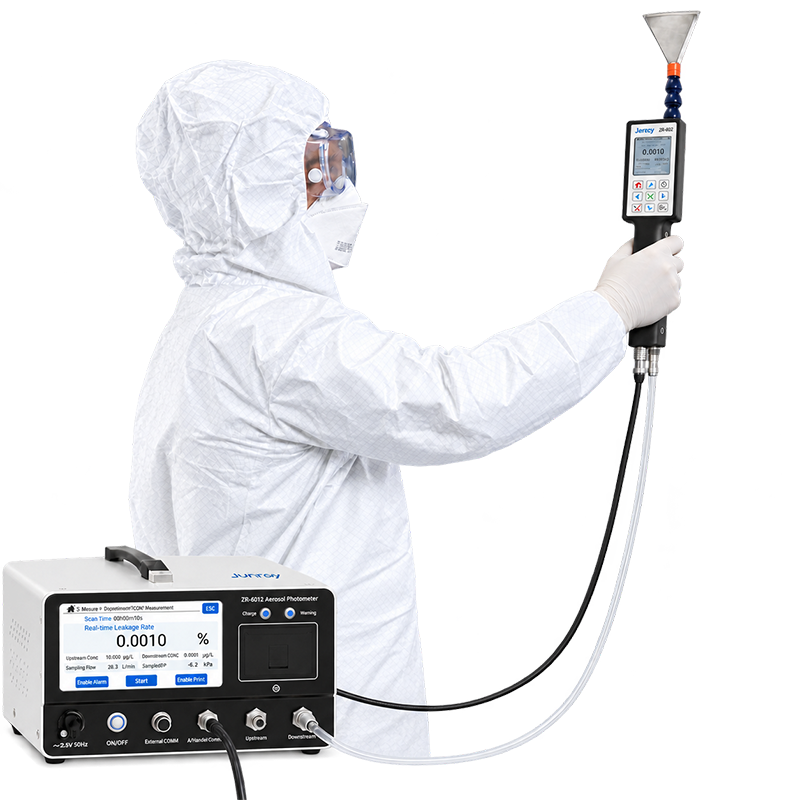

Junray ZR-6012 Aerosol Photometer
The Junray ZR-6012 along with our other photometer related products are manufactured by Junray, a world leading ISO 9001 & ISO 17025 accredited global manufacturer of cutting-edge measurement instrumentation. Junray was the world’s first ISO 9001 & ISO 17025 accredited manufacturer of aerosol photometers and has helped over 20 global laboratories obtain their ISO 17025 accreditation.
In addition to supplying aerosol photometers, Junray also manufacture and supply photometer calibration systems which are widely used in laboratories throughout the world. All our photometers come supplied with (at no additional cost) an ISO 17025 calibration certificate and NATA re-calibration is available in Australia as required.
