Description

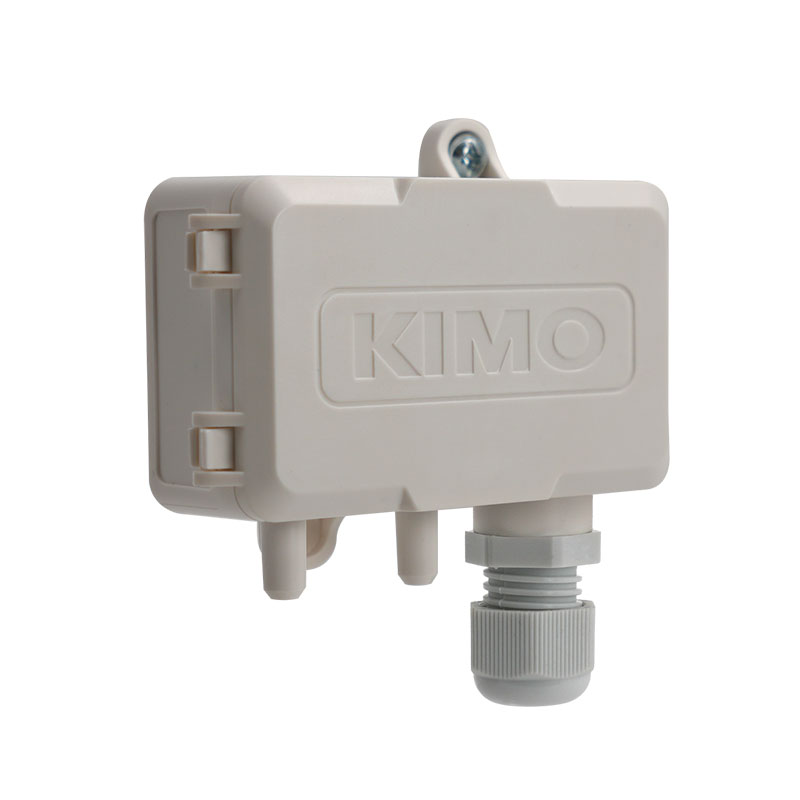

The Kimo CP20 series of differential pressure transmitters has been designed to provide accurate, reliable pressure measurement for HVAC, cleanroom, laboratory, industrial process and building management applications. Engineered for measuring air and neutral gases, the compact CP20 series combines high accuracy with simple installation and long-term stability, making it an ideal choice for pressure monitoring, filter condition measurement, duct pressure control and airflow applications.
Available with either 0 to 10 V or 4 to 20 mA outputs, the Kimo CP20 series integrates easily with virtually any Building Management System (BMS), Energy Management System (EMS) or PLC. Every model features a robust IP54 housing, manual auto-zero function and excellent resistance to overpressure, ensuring dependable operation even in demanding environments. The transmitters are suitable for temperatures from -40°C to +60°C and are designed specifically for air and other non-corrosive, neutral gases.
Key Features
- High-accuracy differential pressure measurement
- Compact, space-saving design
- Available with 0 to 10 V or 4 to 20 mA analogue outputs
- Manual push-button auto-zero calibration
- IP54 protected enclosure
- Suitable for air and neutral gases
- Compatible with most BMS and HVAC control systems
- Fast response time (<8 seconds)
Kimo CP20 Models
- CP21 is ideal for very low-pressure measurements where maximum sensitivity is needed, such as cleanrooms & controlled environments
- CP22 provides a wider measurement range for general HVAC duct pressure and air handling systems
- CP23 is intended for higher-pressure ventilation and industrial airflow applications with greater pressure differentials
See the data sheet under the download section for more. By selecting the model with the most appropriate measuring range, users achieve the highest possible measurement resolution and accuracy while maintaining excellent long-term reliability.
