Description

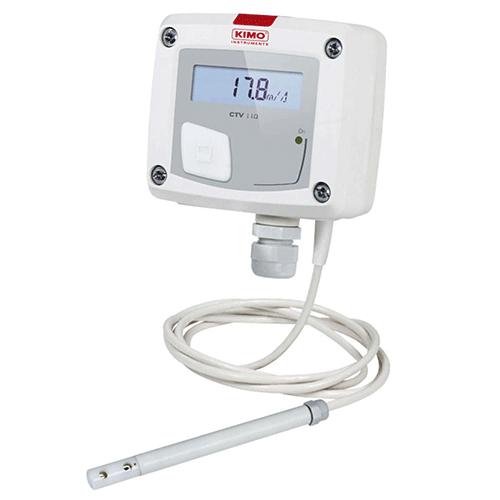

The Kimo CTV 110 is a compact, modern and highly reliable transmitter with hotwire probe measuring both air velocity from 0 to 30 m/s and temperature from 0 to +50°C. It’s designed for permanent installation in facilities and connection back to a BMS, EMS, telemetry, data logger or SCADA system for continuous real-time monitoring of air velocity, temperature and air flow.
The Kimo CTV 110 offers a number of user selected outputs along with a large easily readable LCD display. The probe is designed for use in general HVAC and indoor air measurement related applications.
Key Features
- Measures air velocity from 0 to 30 m/s with +/- 3% of reading accuracy
- Measures temperature from 0 to +50 °C with +/- 0.30 % of reading accuracy
- Alternating display of air velocity or temperature
- Available with or without 10 digits LCD display
- IP65 rated enclosure
- 0-10 V or 4-20mA output, active, power supply 24 VAC / VDC (3-4 wires)
- USB mini din cable computer connection
- Optional configuration software and USB cable
- Measurement units in °F, °C, m/s, fpm
- 24 VAC or 24 VDC power supply
- CE certified
- 1 year warranty
