Description

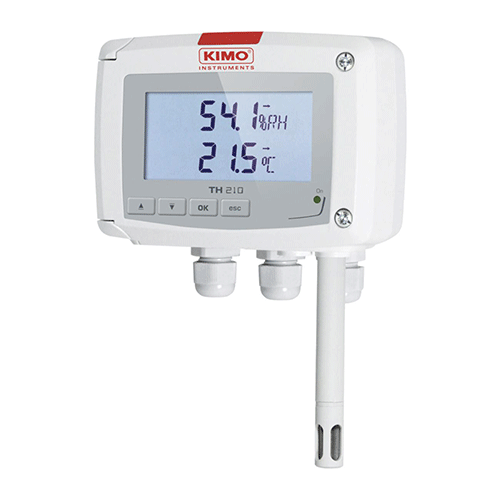

The Kimo TH 210-R is a compact, high quality, rugged and reliable temperature and humidity sensor for mounting in facilities and connection back to BMS, EMS, telemetry, data loggers, SCADA systems and or other systems or devices. It’s a precision sensor capable of continuously measuring humidity from 0 to 100% RH and temperature from -20 to +80°C using the ambient version or model. There is also a PC remote probe based version which can also measure temperature from -20 to +80°C and a 316L stainless steel version which is designed to measure temperature from -40 to +180°C.
The Kimo TH 210-R features a large dual LCD display, 2 relay outputs, various user selected analogue output options, it calculates various other useful parameters, its quick and easy to install, offers PC connectivity for configuration and calibration and its fully serviced, supported and calibrated in Australia.
Key Features
- Measures temperature from – 20 to 80 deg C with 0.3% of reading accuracy
- Measures humidity from 0 to 100% RH with 1.5% accuracy
- Calculates dew point
- Calculates absolute humidity
- Calculates combination ratio
- Calculates wet temperature
- Calculates enthalpy
- 0 to 5 VDC, 0 to 10 VDC and 4-20mA outputs (user selected)
- 2 x relays built-in, 3 amp, 230 VAC
- ABS V0 IP65 housing, available with or without 2 line, 19 digit display
- Built-in trend indicator
- 316L stainless steel or poly carbonate probe options
- Results displayed as °F, °C, % RH, °Ctw, °Ctd, g/m³, g/kg, kj/kg
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
- USB mini din cable connection to PC with optional software
- 1 year warranty
