Description
The Micron View A010 is a high performance portable particle counter designed for use in ISO class 1, ISO class 2 and or other controlled environments where monitoring particles down to 0.1um in size is required. It may be used as a standalone instrument or used with an optional high pressure diffuser for counting particles in compressed air and gases.
The unit is capable of storing up to 5 million samples, its fully 21 CFR-11 compliant, it incorporates 2 x 9000mA hour internal lithium ion batteries, has a built-in alarm buzzer, export file capabilities, Ethernet, USB and Wi-Fi connectivity, its constructed from 316L quality stainless steel and has many other features sought after by particle monitoring professionals.
Key Features
- 0.1um to 1um particle size range
- Designed for ISO Class 1 and Class 2 applications
- 10 LPM flow rate with closed loop automatic flow control
- 6 particle size channels (0.1µm, 0.2µm, 0.3um, 0.5um, 0.7um, 1.0µm)
- Concentration limit: 4,000,000 particles/ft³ at 10% coincidence loss
- Zero count <1 count / 5min
- Internal pump with HEPA filtered exhaust (>99.999%@0.1µm)
- Zones / locations: 20,000 zones and 200,000 locations
- Sampling time: 1 second to 168 hours
- Cycles 1 – 1000 samples on one location
- Ultra long life laser with a 10 year warranty
- 5,000,000 sets of sample records data storage
- Large 8” color LCD capacitive touch screen, quick response, even with 2 pairs of latex gloves
- Language: Chinese, English
- Fully 21 CFR-11 compliant
- Multi level authority management, featured with audit trail
- Ultra light at only 6 Kg
- 316 stainless steel enclosure
- Built-in 2 x rechargeable lithium ion battery (9,000mA hour)
- 1 Year Warranty
With its ultra-long-life laser diode, 10 year diode warranty, 5 million sample data storage, large 8 inch color display and other key features, the Micron View A010 is a feature packed workhorse for the particle monitoring professional. The unit is fully 21CFR-11 compliant, operates off batteries or mains and optional validation documentation is available for customers who require it.

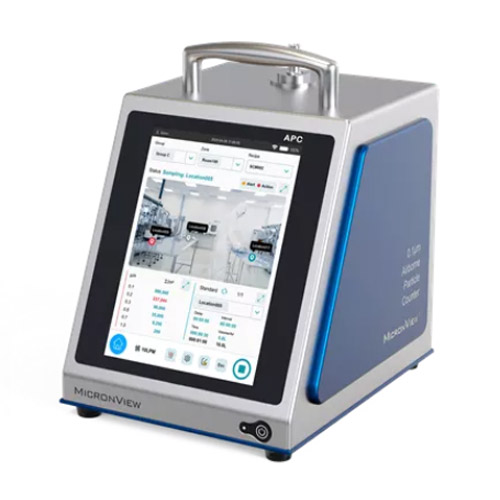

Micron View A010
The air flow inside the Micron View A010 is monitored by a mass flow meter. The PID controller automatically adjusts blower speed. A reaction speed of 100m/s ensures stable flow and flow rate accuracy ±3%. Micron View’s airborne particle counter laser temperature control system ensures the laser temperature remains fixed, extending the working life of the laser and keeping the output wavelength stable. This ensures the monitoring process is not affected by external temperature and readings remain reliable. The surface of the scattered light collector is gold plated for corrosion resistance and reliability.
