Description

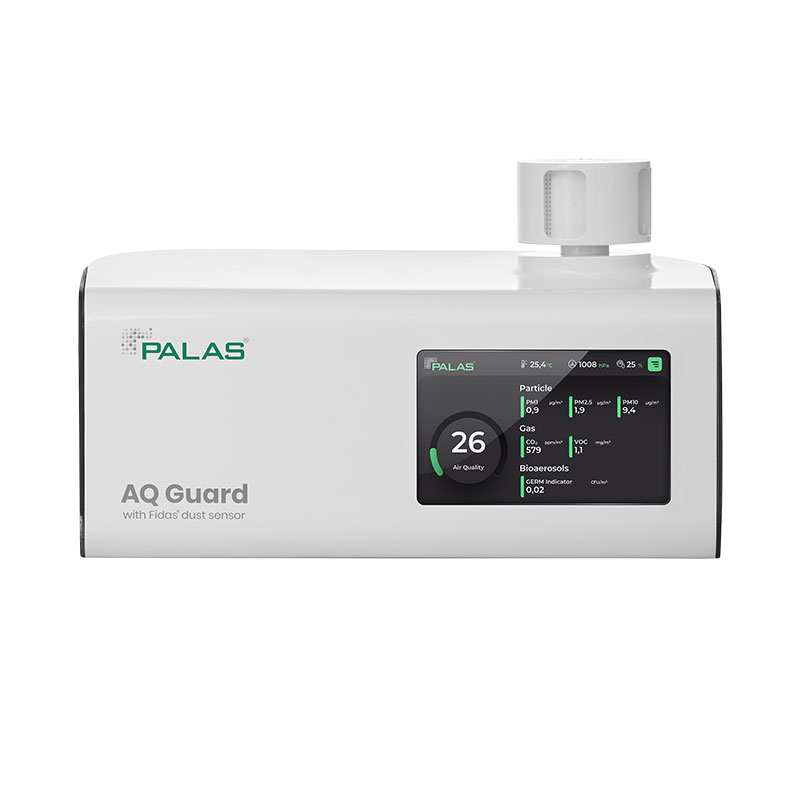

The Palas AQ Guard is currently the most advanced portable aerosol monitor of its type in the world for real-time indoor / outdoor particle and air quality measurements. This unit is a state-of-the-art, research grade, high resolution spectrometer capable of providing highly accurate measurements. The Palas AQ Guard features a wide 175nm to 20um particle size range, 64 high-resolution particle size channels, a massive 10 GB of data storage, and many other features WAY beyond the capabilities of competitive instruments on the market.
A newly developed mass conversion algorithm calculates PM values based on single-particle optical light scattering, taking signal duration and shape into account. The sensor system and advanced algorithms were developed based on the same technology as used in the MCERTS & EN 16450 certified Palas Fidas 200 series. An outdoor-rated ambient version of this model is also available (with heated aerosol inlet) which achieves precision comparable to type approved compliance grade instruments.
Measurement Capabilities
- Simultaneous PM1, PM2.5, PM4, PM10 and TSP (total PM) particle mass measurements
- Particle counts (number)
- Particle size distribution over 64 high-resolution particle size channels
- Atmospheric pressure (700 – 1,100 hPa)
- Temperature (-20 to +60 degrees C)
- Relative humidity (0 to 100%)
- CO2 (0 to 5,000 ppm) using NDIR
- Infection risk index
- Air quality index
Key Features
- 175nm to 20um wide particle size range
- 64 high-resolution particle size channels
- 0.1ug/m3 (0.0001mg/m3) to 20,000 ug/m3 (20mg/m3) particle mass measurement range
- Simultaneous PM1, PM2.5, PM4, PM10, and TSP dust fraction measurements
- Simultaneous particle counts and particle size distribution measurements
- Simultaneous temperature, relative humidity, atmospheric pressure and CO2 measurements
- Also measures the infection risk index and air quality index
- 1.0 LPM flow rate
- Ultra-long life LED light source technology
- USB, Ethernet, WI-FI and optional UMTS communications
- Built-in 4G modem and SIM card slot for remote data accessing (easily upgraded)
- Large 800 x 480 Pixel 12.7cm color touch screen display
- 10 GB enormous data storage capacity
- Lightweight at only 2.4Kg
- Fast 1-second response time
- -20 to + 50 degrees C temperature range
- 22 MHz fast signal processor with 256 raw data channels
- The same technology as used in the world-renowned Palas Fidas 200 series which is MCERTS & EN16450 approved.
- Computation of air quality index
- Extremely high accuracy measurements due to advanced algorithms
- Long term stability due to self-calibration for measurement of flow rate, particulates, and gaseous pollutants
- Windows 10 IoT Enterprise operating system
- Palas PD Analyze advanced measurement software included
- Low power consumption (15 watts)
- Operates on AC, DC, or even power-over-Ethernet
- 2-year calibration interval (user calibrated using Palas Mono Dust)
Typical Applications
- Indoor air quality monitoring
- Outdoor air quality monitoring
- Production processes
- Occupational health & safety exposure monitoring
- Testing HEPA filters
- Monitoring inside mining equipment cabins to ISO 23875 (temperature, humidity, CO2, particle counts, particle size, particle mass)
- Bulk material handling (mixing, discharge, storage, packaging)
- Fence line Monitoring outdoors
- Construction sites, roads, railroads, demolition sites
- Buildings, schools, kindergartens, hospitals, hotels, offices, public service buildings
- Residential buildings near construction sites or other polluted areas
- Public transportation, airports, train stations, tramways & underground stations, cruise ships, passenger cabins
Web Interface
The Palas AQ Guard features fast data interfaces and allows real-time access over Ethernet, WiFi, or a cellular network. Since all the results are calculated and recorded within the analyzer it requires no external data processing. Users retain full control over their data and decide over information access. The AQ Guard can also provide numerical data, using various communication protocols, as well as visualize information on any type of device using a modern web interface.
