Description

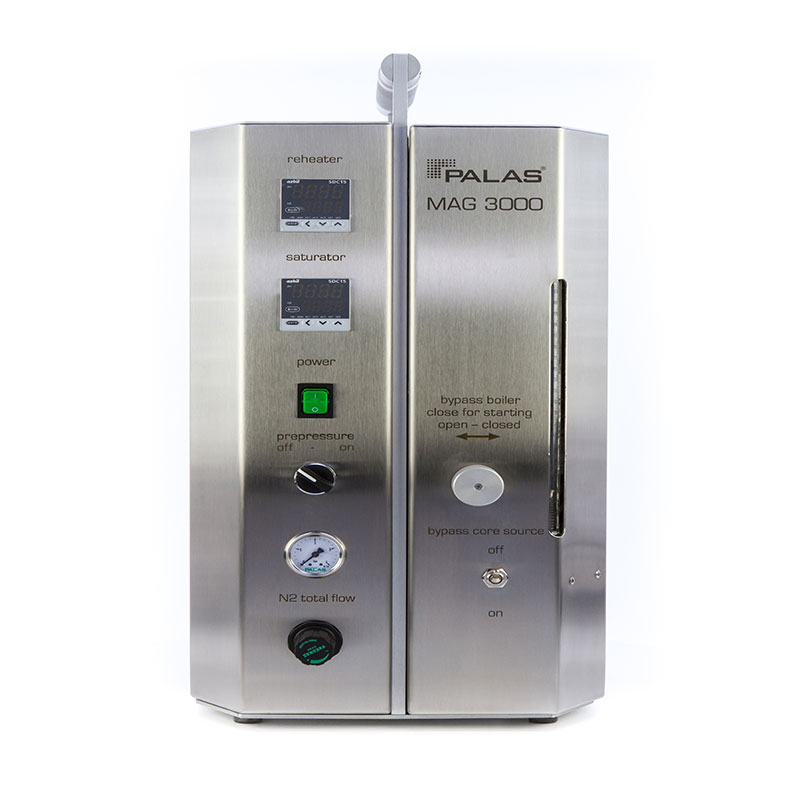

The Palas MAG 3000 operates based on the Sinclair-LaMer principle (1943). It comprises a core source to generate condensation cores with a particle diameter of approximately 85 nm, a vaporizer to vaporize the particle-forming material, a reheating unit, and a condensation flue, in which the particle-forming material condenses on the condensation core. The condensation process here is heterogeneous.
The new core source atomizes approximately 20 mL saline solution in only 10 hours and requires no drying system due to the very small droplets. Conventional Sinclair-LaMer generators, including past generators by Palas GmbH, use a so-called Collison atomizer. The concentration constancy, high mass flow, and the resulting need for a drying system did not meet our quality requirements concerning reliability and easy operation.
Key Features
- Particle size adjustable from approx. 0.2 to 8 µm for DEHS (other particle materials upon request)
- Reproducible particle size adjustment (uncharged aerosols)
- Minimal use of the saline solution, approx. 20 mL in 10 h
- No drying system, no silica gel
- Reliable bypass adjustments for the evaporator and core source
- Rapid particle size modification up to factor 2.5 within approx. 10 seconds using the bypass adjustments
- Robust design
- Reliable function, high reproducibility
- Low maintenance
- Reduces your operating expenses
- Maximum particle number concentration 106 particles/cm3
- Volume flow 3.5 – 4.5 l/min
- Filling quantity 300 ml (DEHS), 70 ml (salt solution)
- Power supply 115 – 230 V, 50/60 Hz
- Particle material DEHS (others on request)
- Carrier/dispersion gas N2
- Aerosol outlet connection Outlet 1: inside = 8 mm, outside = 10 mm; Outlet 2: inside = 18 mm, outside = 20 mm
- Mean particle diameter (number) 0.2 – 8 µm (DEHS)
- Geometric standard deviation (number) < 1,15
- Dimensions 610 • 300 • 300 mm (H • W • D)
- Weight Approximately 22 kg
