Description

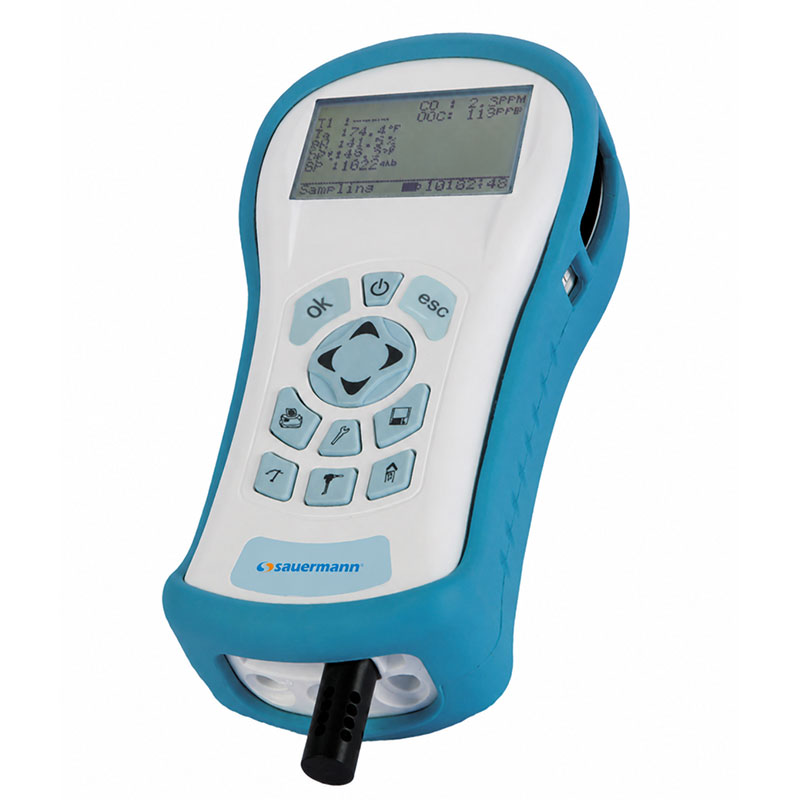

The Sauermann SI-AQ TVOC monitor is a professional handheld instrument designed for comprehensive indoor air quality (IAQ) assessment. Ideal for environmental consultants, occupational hygienists, HVAC professionals, laboratories, and facility managers, it delivers fast, accurate measurement of Total Volatile Organic Compounds (TVOCs) while monitoring key environmental parameters.
Using a high-performance Photoionization Detector (PID) sensor, the Sauermann SI-AQ provides reliable TVOC measurements across a wide operating range, making it suitable for identifying indoor air quality issues, investigating odor’s, validating ventilation performance, and assessing exposure to airborne contaminants. The modular design allows users to configure the instrument with up to three additional gas sensors, creating a versatile solution for a broad range of air quality applications.
What it Measures
- TVOC’s
- Temperature (-40 to 125 degrees C with 0.4 deg C accuracy)
- Relative humidity (5 to 95% with +/- 2% accuracy)
- Wet bulb
- Dew Point
- Barometric pressure (260 to 1,260 mbar, +/- 2 mbar accuracy)
Optional Sensors
- CO2 (0 to 5,000ppm NDIR with 1ppm resolution)
- CO (0 to 200ppm EC with 0.1ppm resolution)
- CH2O (0 to 10,000ppb EC with 1ppb resolution)
- H2S (0 to 100ppm EC with 1ppm resolution)
- NO2 (0 to 20ppm EC with 0.1ppm resolution)
- O2 (0 to 25% EC with 0.1% resolution)
- SO2 (0 to 20ppm EC with 0.1ppm resolution)
- NO (0 to 250ppm EC with 0.1ppm resolution)
Key Features
- Select up to 3 gases in total (TVOC’s, CO₂, CO, Formaldehyde, NO₂, NO, O₂, SO₂ and H₂S
- High-accuracy PID sensor for Total VOC (TVOC) measurement
- Measures TVOCs from 0 – 20,000 ppb or 0 – 200 ppm
- Simultaneous measurement of temperature, relative humidity and barometric pressure
- Active internal sampling pump for continuous air sampling
- Real-time data logging with downloadable PC software
- Bluetooth® communication and USB connectivity
- Internal memory capable of storing up to 2,000 tests
- Rugged handheld design
- Long-life rechargeable lithium-ion battery with AC charger
- Optional sampling probe and wireless printer
Typical Applications
- Indoor air quality investigations
- Building commissioning
- HVAC system performance verification
- Occupational hygiene assessments
- Industrial and laboratory monitoring
- Environmental consulting
- Schools, offices, healthcare facilities and commercial buildings
Specifications
| Parameter | Specification |
|---|---|
| TVOC Sensor | Dynamic PID (Photoionization Detector) |
| TVOC Measurement Range | 0 to 20,000 ppb or 0 to 200 ppm |
| Additional Gas Sensors | Up to 3 selectable sensors |
| Available Gas Options | CO₂, CO, Formaldehyde (CH₂O), NO₂, NO, O₂, SO₂, H₂S |
| Temperature | Ambient temperature measurement |
| Relative Humidity | 5–95% RH |
| Barometric Pressure | 260–1260 mbar |
| Data Logging | Real-time logging with PC software |
| Internal Memory | 2,000 stored tests |
| Communications | Bluetooth® and USB |
| Sampling | Active internal pump |
| Battery | Rechargeable Li-Ion (approximately 12-hour operation) |
| Accessories | Optional sampling probe and wireless printer |
The Sauermann SI-AQ TVOC monitor combines laboratory-grade measurement capability with portable convenience, providing professionals with dependable air quality data for compliance, troubleshooting and environmental assessments.
