Description

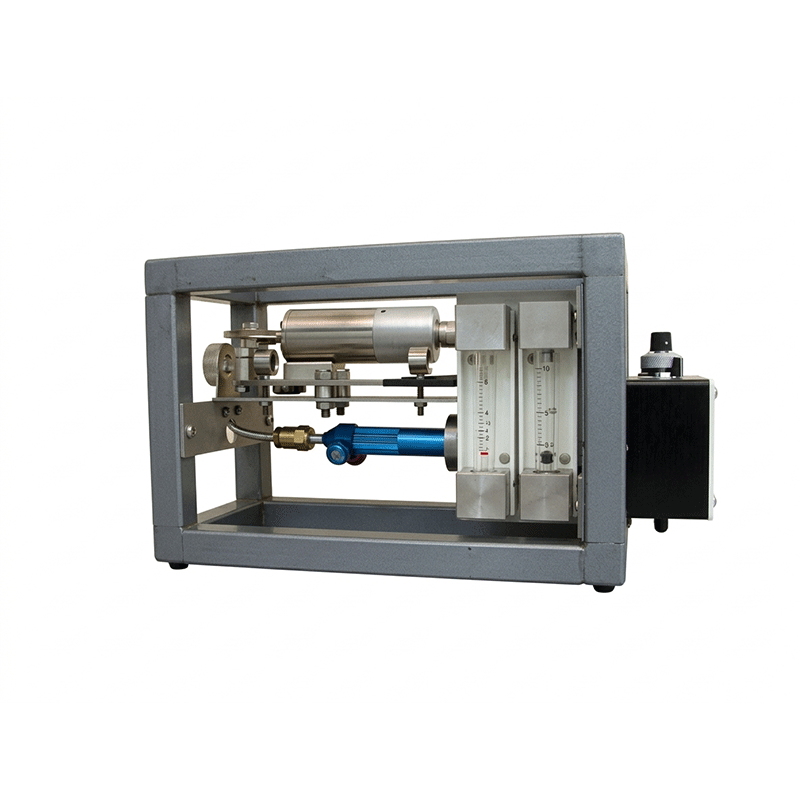

The SFP Services 7000 sodium chloride aerosol generator is a compact and portable generator, producing a sub-micron aerosol by burning a “stick” of salt in an oxy-propane flame at a constant controlled rate.
Dimensions
- 245 wide x 150 high x 120 mm deep
Weight
- 3.2 kgs. [excluding gas cylinders & regulators.]
Power
- Replaceable alkaline batteries {8 off AA size 1,5 volt.}
Gas Supply.
- Not supplied with unit
- Oxygen and Propane
Consumption
- Oxygen 900 ml/min @ 15 psig; Propane 200 ml/min @ 15 psig
Aerosol Range
- Variable up to 0.5 grams per minute
Aerosol Size
- Approximately 0.21µm
Salt Stick Feed Rate
- Variable from 0.6-13mm/min
Salt Stick Supply
- Available to order from SFP Services
- 10 off 6mm diameter.(1 pack.) supplied with unit
Calibration
- Initial certification by SFP Services prior to dispatch
- During service by SFP’s calibration service or distributor
