Description

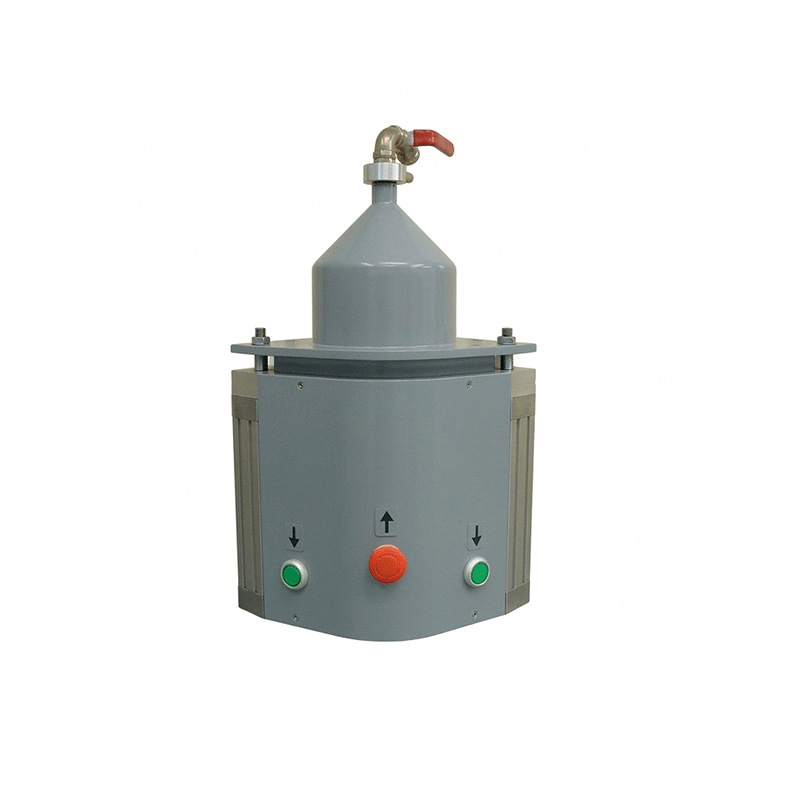

The SFP Services Type 1400 air filter / media test fixture is designed for use with SFP sodium flame photometer systems.
General Description
A pneumatically operated clamping unit using adapter plates to suit area or filter under test. Pressure drop fittings are incorporated with rapid fit connections (6mm o/d 4mm i/d). The clamping is operated by a twin button system to keep operators fingers clear of clamping area. ( modified to your specifications if required).
Dimensions
- 360mm wide x 215mm deep x 550mm high (closed)
Weight
- 8.8 Kg
Air Supply
- Clean, dry, oil-free (can be supplied from photometer).
- 3.5 to 7.0 bar. Regulator to control the clamping pressure plus restrictors on the ram inlets.
Test Area
- 200 cm². Adapter plates to suit 100 cm² and filters
Test Flow
- Bi directional
- 22 mm diameter tube at top of unit.
Manometer Fittings
- On left hand rear of unit and on top chamber, rapid fit connection to take 6/4 tube, for pressure drop. Note: If the fittings are not in use they must be sealed off.
