Description

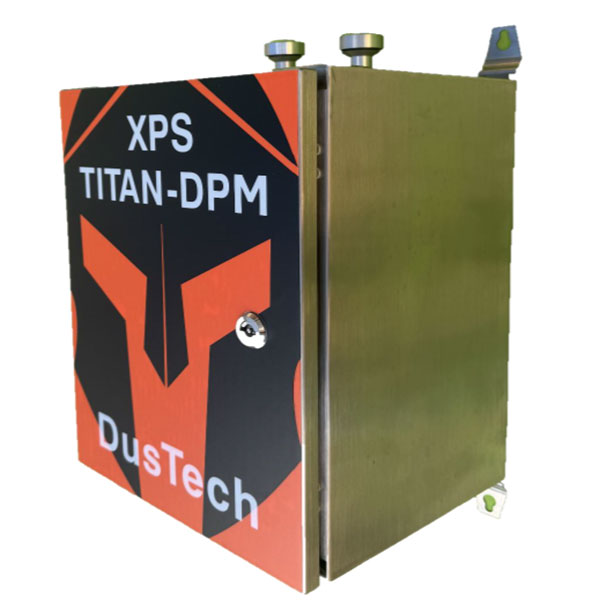

Introducing the evolutionary DusTech XPS Titan DPM real-time diesel particulate monitor. This state-of-the-art device is the only instrument of its type in the world (we are aware of) that combines Faraday Cup Electrometer Unipolar Diffusion Charger technology and optical particle counting technology to measure particulates over a massive 10nm to 40um range, along with gases, noise and other environmental parameters. It’s ideal for measuring diesel particulates and other combustible aerosols in tunnels, underground mining, at airports, near main roads, freeways and in many different environments.
With a wide particle size range, this unique instrument measures literally everything a particle monitoring professional could want to measure. The unit has 6 particle sizing channels, it measures particle mass, particle counts, LDSA (lung deposited surface area), toxic gases, environmental parameters (wind speed, wind direction, humidity, temperature, noise, heat stress & much more). The unit can store 400 million samples internally and may be cloud connected for remote cloud-based monitoring.
What it Measures
- Simultaneous PM1, PM2.5, PM4.25, PM10 and TSP particle mass measurements (10nm to 40um)
- Particle counts (ultrafine) from 10nm to 1,000nm (1um)
- Particle counts (fine) from 0.35um to 40um (6 size channels)
- LDSA (lung deposited surface area) from 0 to 100,000 um2/cm3 (10nm to 40um)
- Temperature *
- Humidity *
- Globe temperature *
- Wind speed *
- Wind direction *
- Atmospheric pressure *
- WBGT (wet bulb globe temperature) – Calculated (requires temperature, humidity & globe sensors) *
- Gases (CO, H2S, O2, CO2, NO2, NO, SO2, LEL, VOC’s) Up to 8 simultaneously *
- Sound pressure (noise) *
Note: * indicates optional sensors
Key Features
- 10nm to 40um ultra-wide particle size range
- Two different measurement technologies combined in the one instrument
- Modbus TCP/IP, Modbus-RTU SCADA integration
- Cellular 4G / 5G, Wi-Fi and LAN Ethernet connectivity (data upload)
- 400 million sample internal data storage (2 years of logging)
- Local & cloud-based data storage capability
- Monitors a wide variety of toxic gases (8 installed at a time)
- Monitors a wide variety of environmental parameters
- Measures both diesel particulate matter and elemental carbon (non-selective)
- Onboard audible / visual alarms
- Onboard touch screen for gravimetric correction factor entry, maintenance and calibration
- 24 VDC power supply, 22 watts
- Optional pole mounting
Unipolar Diffusion Charger Technology
- 10nm to 1,000nm (1um) particle size range
- 0 to 100,000,000 particles cm/3 particle count measurements
- 0 to 80,000 ug/m3 (80mg/m3) mass concentration (mDPM)
- 0 to 100,000 um2/cm3 LDSA (lung deposited surface area)
- 200ms response time
- Capable of monitoring a wide range of toxic gases
- Capable of monitoring a wide range of environmental parameters (wind speed, wind direction & more)
Optical Particle Counting
- 0.35um to 40um particle size range
- 6 particle size channels
- Simultaneous PM1, PM2.5, PM4.25, PM10 & TSP measurements
- 0 to 30,000ug/m3 (30mg/m3) mass concentration range
- 1.2 LPM flow rate
- Maximum particle count rate – 10,000 counts per second
- 1ug/m3 detection limit
- 1 second sampling frequency
Developed in collaboration with Alpha Scientific in Australia, the new DusTech XPS Titan DPM can prove highly beneficial to many industries and workplaces. It may be installed indoors or outdoors in locations where diesel particulates and other fine aerosols pose potential health risks. For more information, feel free to contact Alpha Scientific.
