Description

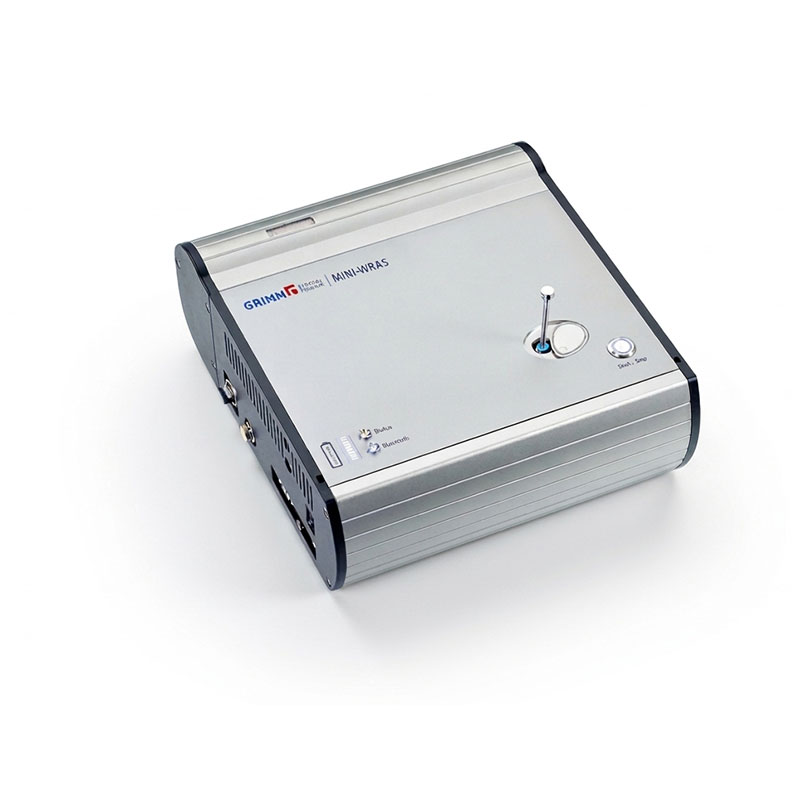

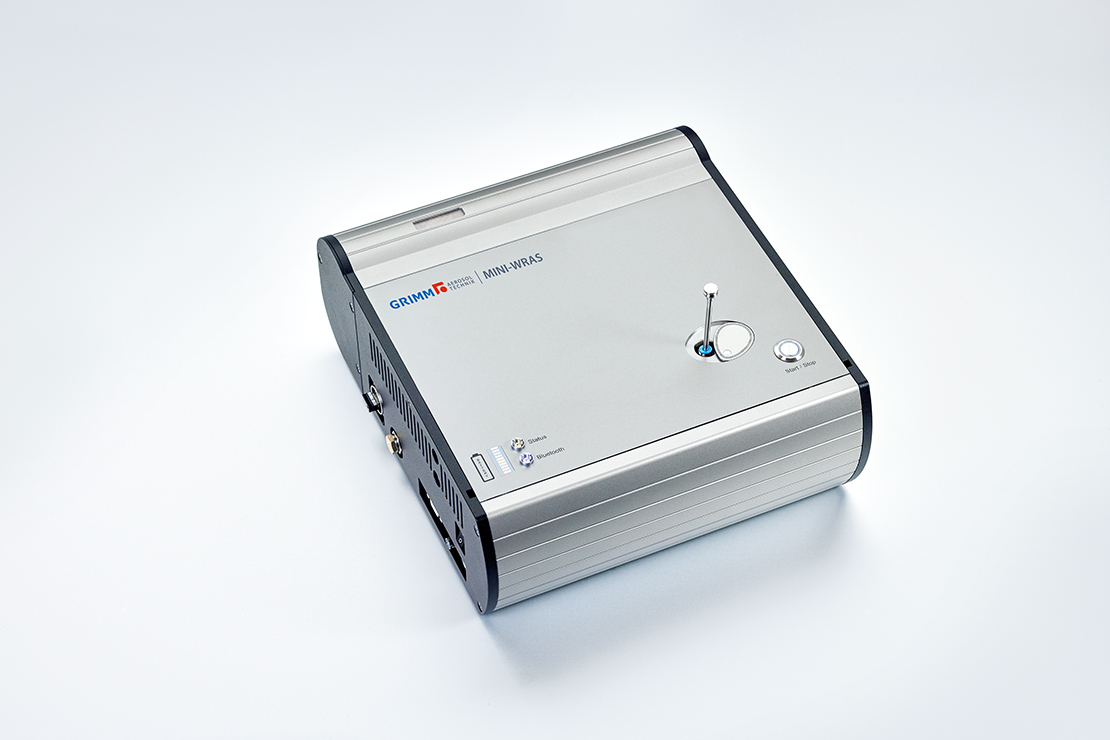

The Grimm MINIWRAS 1371 is the only portable battery powered instrument of its type in the world that allows simultaneous and precise real-time monitoring of both micron sized and nano sized particles from 10nm to 35um. Designed for indoor air quality monitoring, occupational health and safety studies and many other applications. The instrument incorporates 2 well known and widely used measurement technologies in the one compact instrument (optical particle counting & diffusion charging).
The Grimm MINIWRAS 1371 simultaneously measures PM1, PM2.5, PM10 in addition to inhalable, thoracic and respirable dust fractions, while also measuring the particle number concentration and particle size distribution over 41 high resolution particle size channels. Using its internal smart lithium-ion battery the Grimm MINIWRAS may be used for up to 10 hours in the field.
Key Features
- 10nm to 35um ultra-wide particle size range
- Simultaneous PM1, PM2.5 and PM10 mass dust fraction measurements as per EN481
- Inhalable, thoracic, respirable, particle number concentration and size distribution measurements
- 41 particle size channels (10 electrical & 31 optical)
- 0 to 100mg/m3 dust mass concentration range
- 1.2 LPM flow rate
- Built-in intelligent lithium-ion battery with 10 hours of operation
- Bluetooth, RS232, USB flash drive, analog input for meteorological sensors
- One combined data set
- Windows based analysis software
- Particle free purge air for improving detection and reducing signal noise
- Two measuring instruments in a single device (optical particle counter & diffusion charger)
- No consumables or liquids required unlike with some other measurement instruments
- Non-radioactive unipolar diffusion charging technology, no handling license required
- Fully portable operation irrespective of position
- A fully portable, powerful SMPS like system at the fraction of the cost which can be taken into the field
Applications
- Workplace monitoring for both ultrafine particles and dust mass fractions
- Indoor air quality monitoring
- Outdoor air quality and dust monitoring
- Welding fumes and other combustible aerosols
- Nanoparticle source identification
- IAQ in vehicles, airplane cabins, cockpits, busses, trains
- R & D testing in industry
- Nanoparticle and PM monitoring
