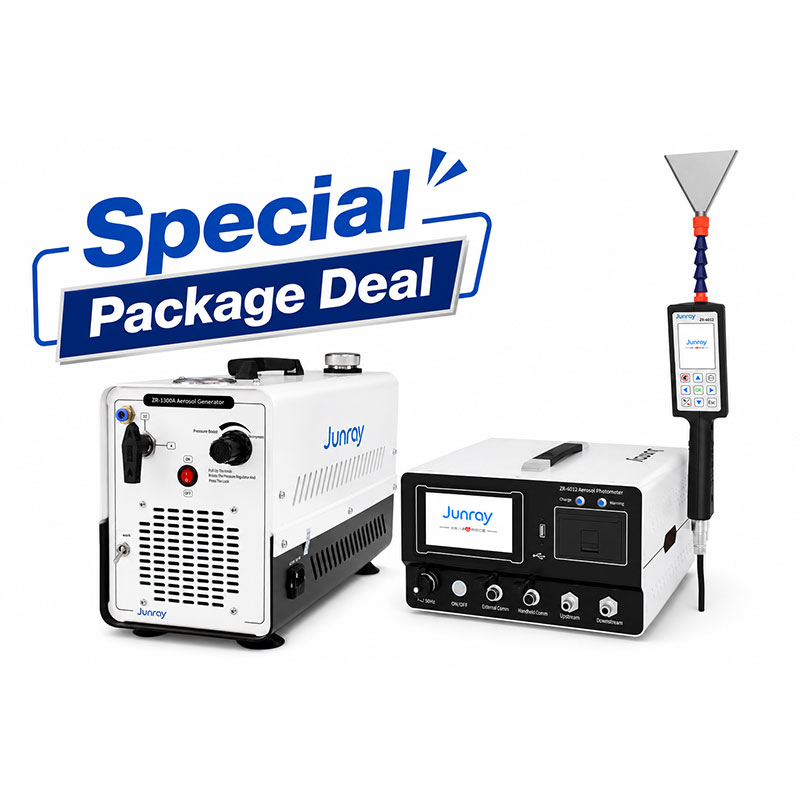

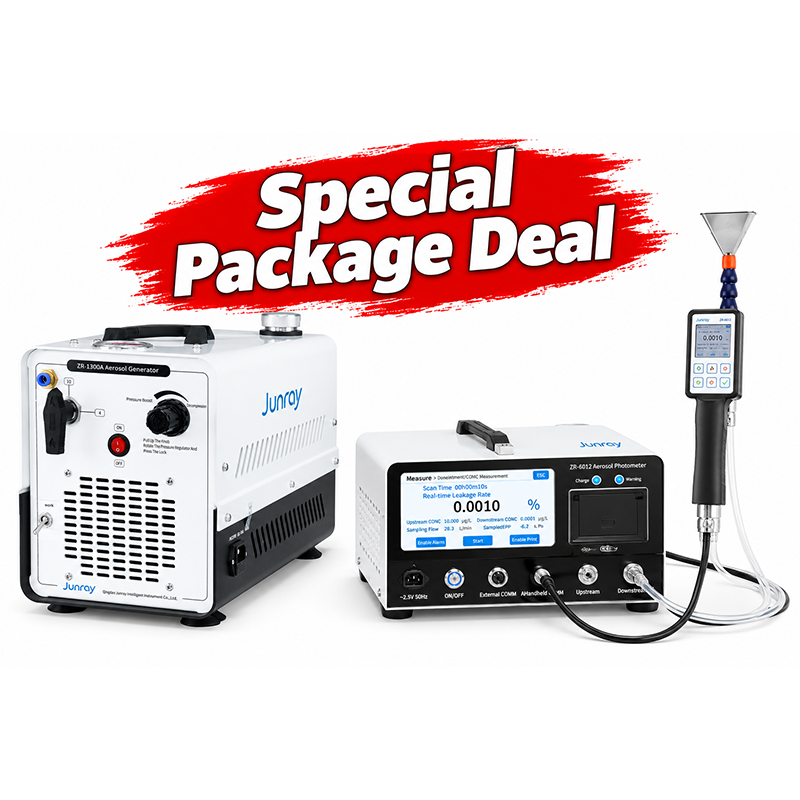

Junray ZR-6012 & ZR-1300A Special Package Deal

$0.00

Alpha Scientific has managed to arrange a special package deal with Junray on the combined purchase of the popular Junray ZR-6012 aerosol photometer and ZR-1300A professional aerosol generator with built-in compressor for added portability. The kit also includes heavy duty travel cases for both the photometer and aerosol generator along with calibration certificates and other accessories. These units may be used in many different applications including testing HEPA filters in cleanrooms and controlled environments, testing H2 class vacuum cleaner filters in the asbestos industry and in many other areas. The photometer unit is also fully compliant with the latest AS 1807:2021 and ISO 14644-3:2021 standards and they are fully serviced and calibrated in Australia.

Description

Alpha Scientific has managed to arrange a special package deal with Junray on the combined purchase of the popular Junray ZR-6012 aerosol photometer and ZR-1300A professional aerosol generator with built-in compressor for added portability. The kit also includes heavy duty travel cases for both the photometer and aerosol generator along with calibration certificates and other accessories. These units may be used in many different applications including testing HEPA filters in cleanrooms and controlled environments, testing H2 class vacuum cleaner filters in the asbestos industry and in many other areas. The photometer unit is also fully compliant with the latest AS 1807:2021 and ISO 14644-3:2021 standards and they are fully serviced and calibrated in Australia.

Photometer Features

  • 28.3 LPM flow rate
  • Impressive +/- 2.5% flow accuracy
  • Wide 0.0001ug/L to 700 ug/L dynamic measurement range
  • 0.0001% to 100% leakage detection
  • Upstream aerosol mass concentrations are displayed in actual micro grams per liter (ug/l)
  • Long life laser diode technology
  • Highly accurate, stable and reliable measurements
  • Large 5 inch color touch screen display
  • Built-in audit tracing
  • 0.5% of reading repeatability
  • Built-in battery with 3.5 hours run time
  • Built in printer for instant results
  • 100,000 groups of onboard data storage. Sampled data can be imported to a PC
  • Light and voice alarms when you exceed the set value
  • Supports PAO, DOP and other aerosols
  • Rugged carry cases are included for any photometer and aerosol generator that is purchased
  • User permission assignment capabilities
  • Includes an ILAC-CNAS calibration certificate (as supplied by the manufacturer)
  • Fully serviced, supported and calibrated in Australia
  • Many other advanced features

Junray photometer package deal

Aerosol Generator Features

  • Unique air channel design, stable air flow and balanced particle output
  • Particle concentration: 100μg/L (air flow is 5.6 m3/min)
  • Particle concentration: 10μg/L (air flow is 56.6 m3/min)
  • Particle output range: 1.4 – 56.6 m3/min
  • Generate multiple kinds of aerosols, DOP, PAO
  • The nebulizer concentration is adjustable across a wide range
  • Built-in compressor for added convenience and portability
  • 0 to 600kPa working pressure range with 1 kPa resolution
  • 4 to 10 built-in adjustable Lazkin nozzles
  • Power consumption 500 watts
  • Length 200 × Width 500 × Height 280mm

These units along with our other photometer products are manufactured by an ISO 9001 & ISO 17025 accredited global manufacturer which provides both instrumentation and calibration services. All our photometers come supplied with (at no additional cost) an ISO 17025 calibration certificate and re-calibration can be done quickly and cost effectively in Australia.

Specifications

Downloads

Product Brochure: ZR-6012 Aerosol photometer
Product Brochure: ZR-1300A Aerosol Generator
