Description

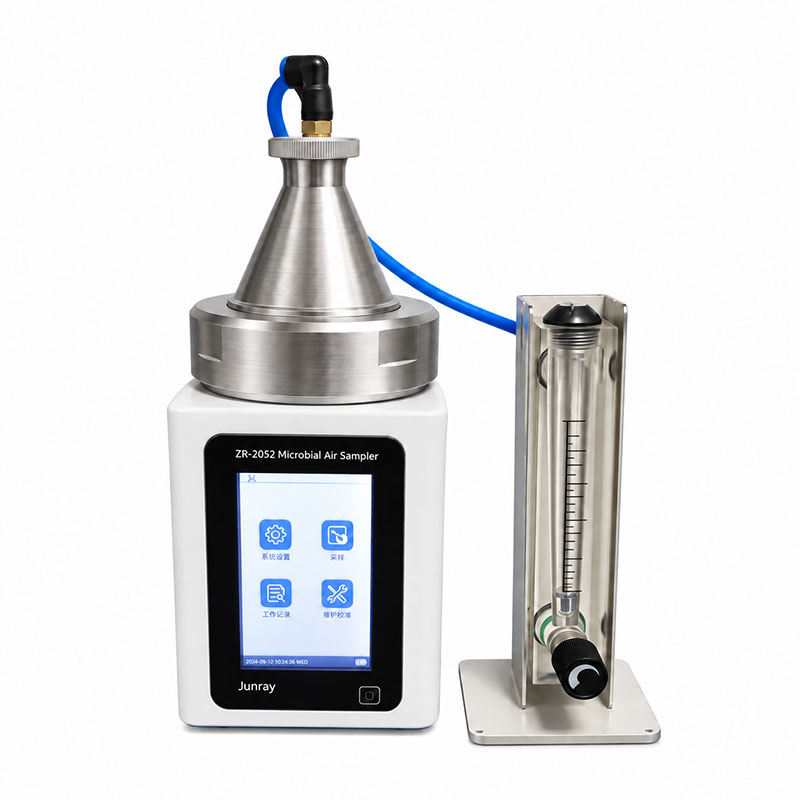

Junray ZR-G01A compressed air and gas sampling kit for use with the Junray ZR-2052 microbial air sampler. This basic sampling kit includes various components such as the sampling adaptor, flow meter / regulator and sample tubing. The Junray ZR-G01A must be operated within the pressure range as shown below. Additional flow regulation may be required by the customer for high pressure applications outside this range.

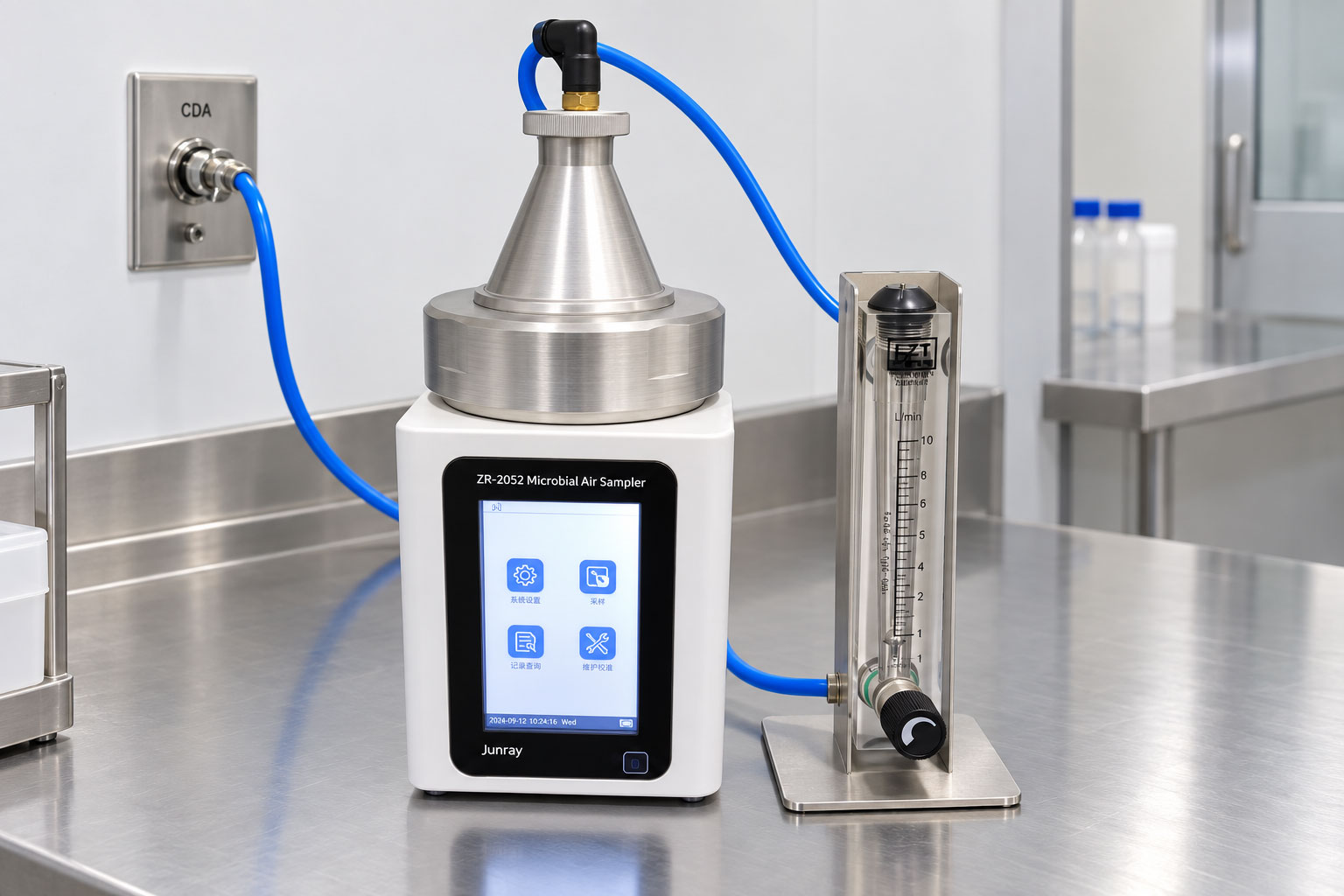

On Junray air samplers, the user simply selects the GC mode / icon and then adjusts the knob on this flow meter until the 100 LPM flow rate is reached. Once the target flow rate is reached, the end user connects the gas sampling adaptor to the sampler and can begin sampling.
Features
- 0 to 6,000 liter per minute adjustable flow range
- +/- 4% flow rate accuracy
- 0 to 10 Mpa pressure range
- 0 to 65 degrees C temperature range
- Built-in pressure valve to reduce the compressed pipeline pressure
- Anodised aluminium sampling head
- Rugged & reliable
- Easy to use
- Designed for use with the Junray ZR-2052 microbial air sampler
- Weight 1Kg
