Description

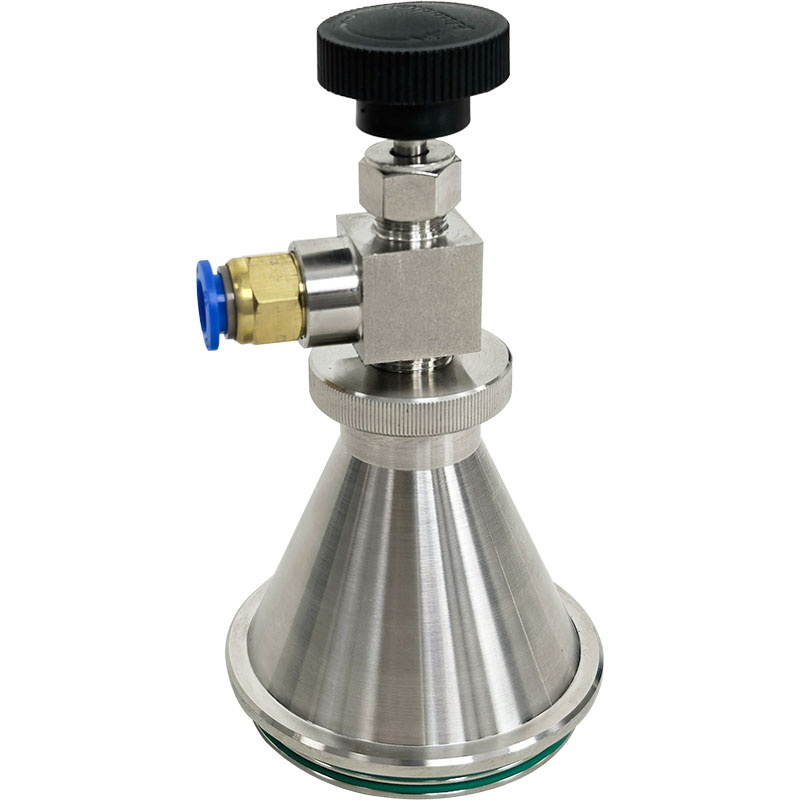

Junray ZR-G01B professional compressed air and gas sampling kit for use with Junray ZR-2053 microbial air samplers. It is fully ISO 8573-7 compliant, and the kit includes various components such as the sampling adaptor, flow meter / regulator and sample tubing. Additional flow regulation may be required by the customer for high pressure applications.

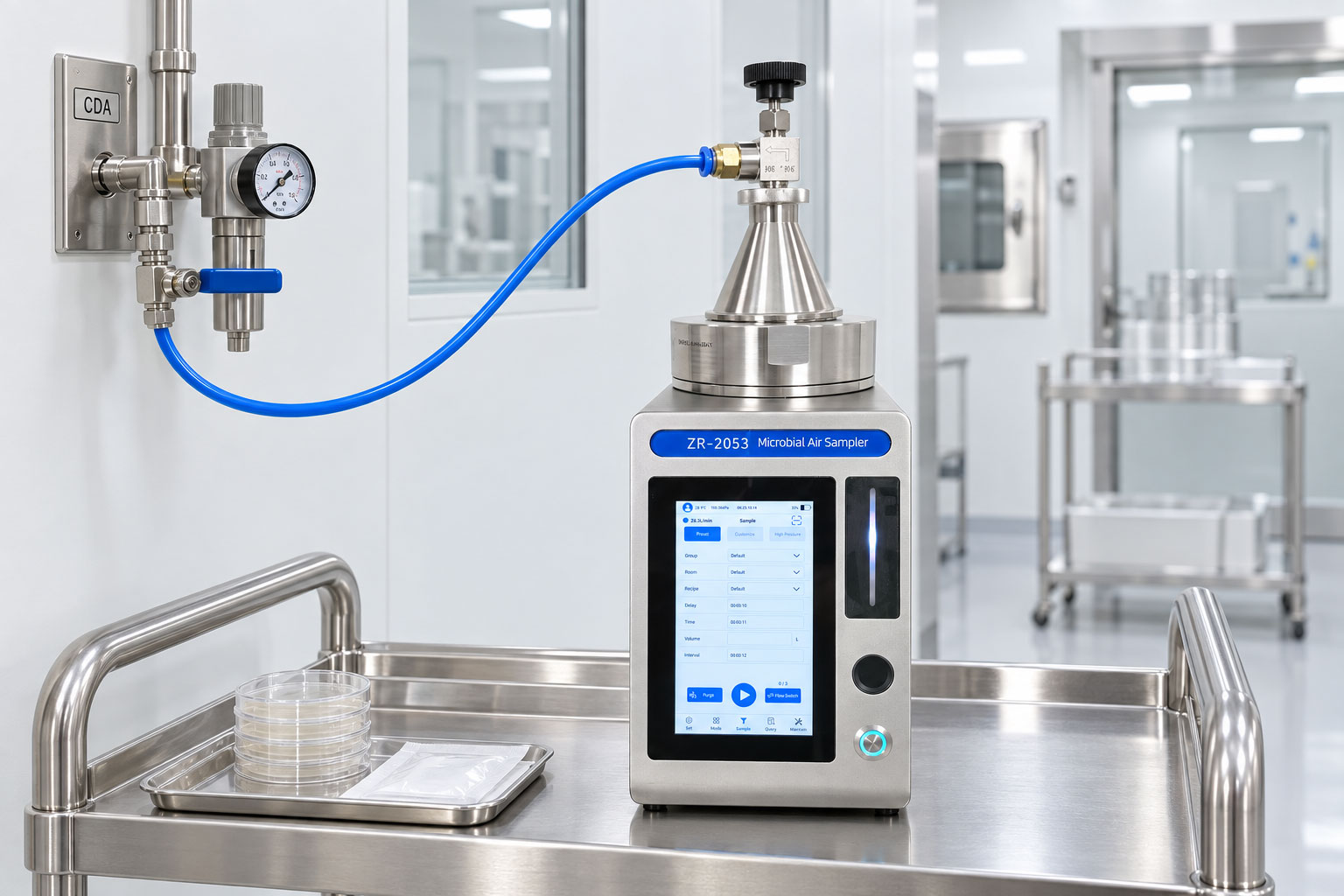

On Junray air samplers, the user simply selects the GC mode / icon and then adjusts the knob on this flow meter until the desired 28.3, 100 or 200 LPM flow rate is reached. Once the target flow rate is reached, the end user can begin sampling. Once sampling has been completed, the user can easily switch the air sampler back into standard mode, where it may be used for general microbial air sampling around their facility.
Features
- Fully ISO 8573-7 compliant
- Can be used at 28.3, 100 and 200 LPM flow rates
- 316L stainless steel construction
- Fully autoclavable
- Supports compressed air, nitrogen, carbon dioxide, argon and oxygen
- Inlet pressure 0.5 to 10 bar, 50 to 1,000Kpa, 7.3 to 145 psig
- VHP and cleaning solution compatible
- Built-in pressure valve to reduce the compressed pipeline pressure
- Rugged & reliable
- Easy to use
- Needle valve flow adjustment with the flow indication displayed on the microbial air sampler
- Designed for use with the Junray ZR-2053 microbial air sampler
- -20 to 80 deg C temperature range
- 0 to 100% RH, non-condensing
- Weight 0.46Kg
