Description

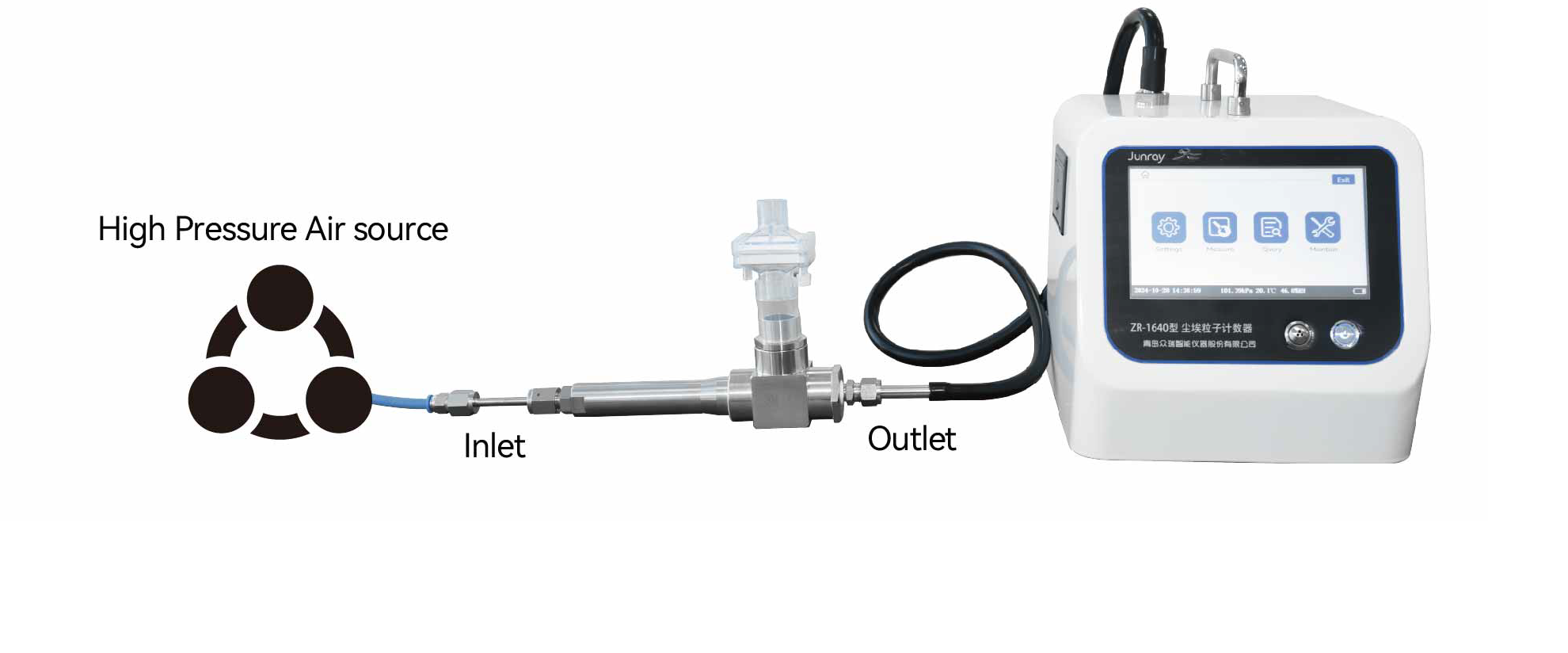

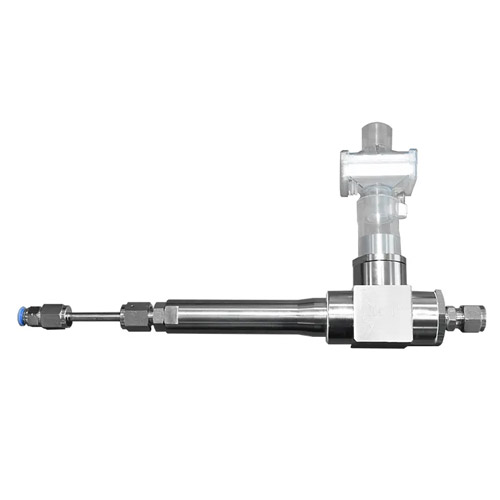

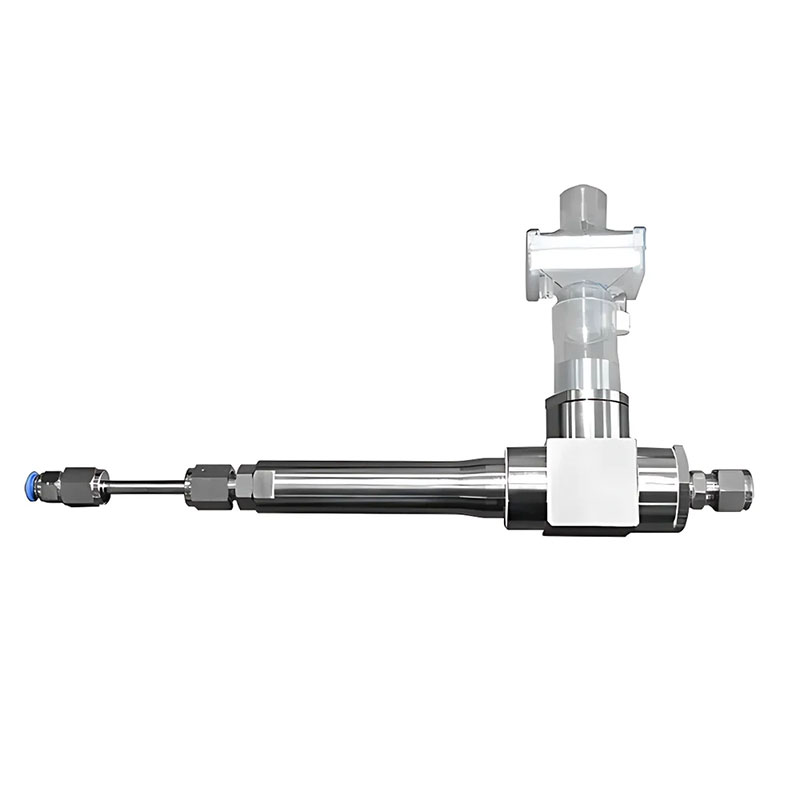

The Junray ZR-G08 high pressure diffuser is available in 2 flow rate versions and is for compressed air and gas sampling with Junray portable particle counters. It’s an affordable, quality and reliable kit which includes the HPD, a pressure reducing valve, VCR adapter, VCR gasket, HEPA filter and tubing. The Junray ZR-G08 is manufactured from 304 grade stainless steel, it does not block or interfere with particle sampling, it provides a stable output of air flow which minimizes the impact of air flow on the detection accuracy of airborne particle counters. These units are suitable for use with clean, dry and non toxic inert gases.
Key Features
- Fully portable and easy to use
- Available in 28.3 and 100 LPM models
- 304 stainless steel construction
- For use with clean, dry and non toxic inert gas
- 10 to 35 degrees C operating temperature
- 30 to 80% RH range
- Inlet pressure for 28.3 LPM particle counters is 0.6 to 0.7Mpa
- Inlet pressure for100 LPM particle counters is 0.54 to 0.7Mpa
- Weight is 1.2 Kg
Model Options
- ZR-G08A (100 LPM flow rate)
- ZR-Go8B (28.3 LPM flow rate)

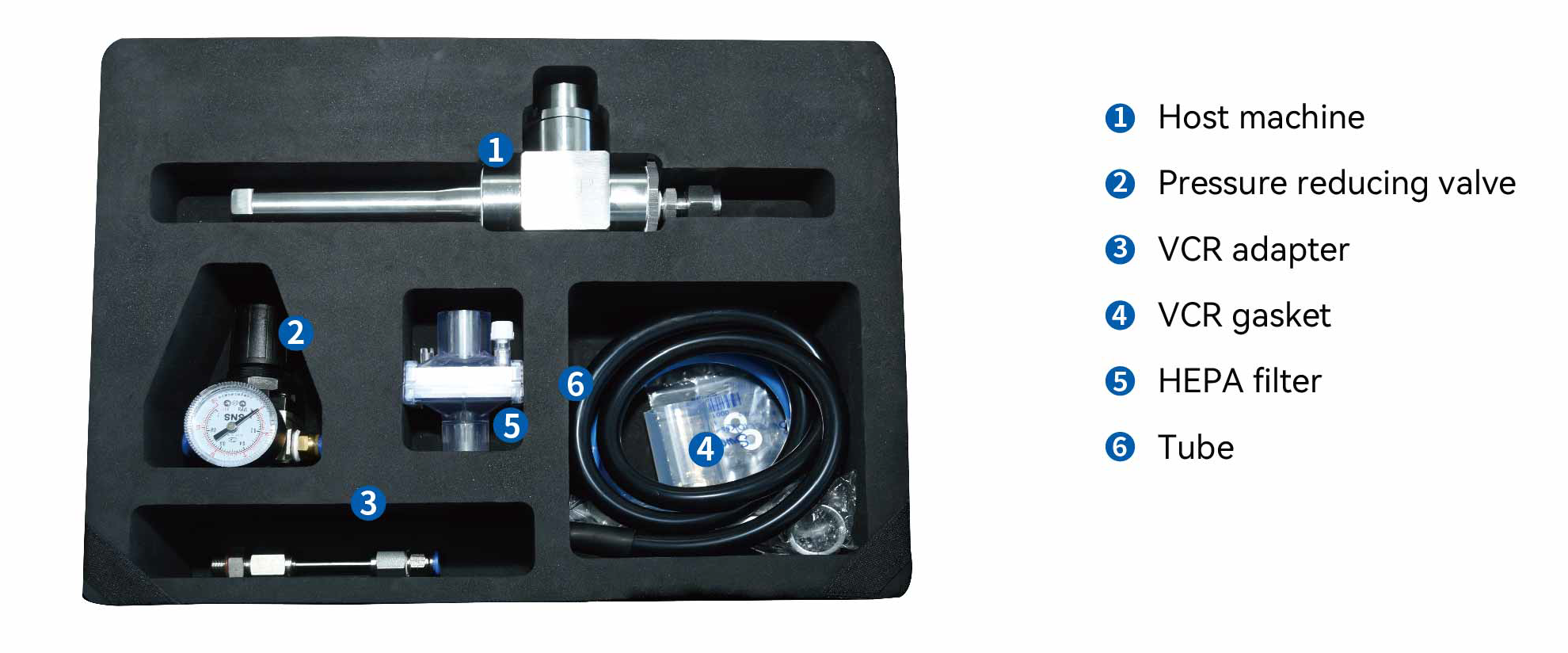

What’s Included
- High pressure diffuser
- Pressure reducing valve
- VCR adapter
- VCR gasket
- HEPA filter
- Tubing
