Description

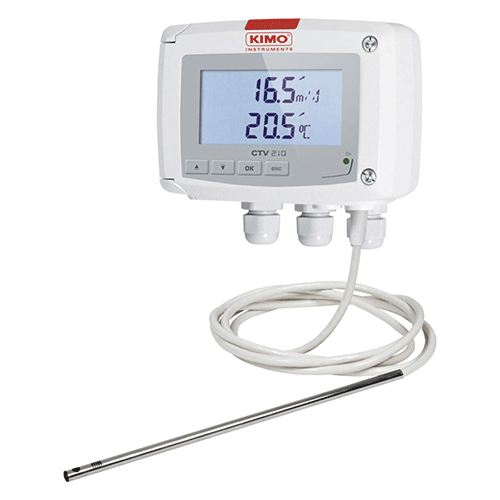

The Kimo CTV 210-R is a compact, modern and highly reliable transmitter with hotwire probe measuring both air velocity from 0 to 30 m/s and temperature from 0 to +50°C. It’s designed for permanent installation in facilities and connection back to a BMS, EMS, telemetry, data logger or SCADA system for continuous real-time monitoring of air velocity, temperature and air flow.
The Kimo CTV 210-R offers a wide variety of user selected outputs, including 2 relay outputs with a large easily readable dual display. The probe is 316L stainless steel, designed for use in cleanrooms, controlled environments, general HVAC and industrial applications.
Key Features
- Measures air velocity from 0 to 30 m/s with +/- 3% of reading accuracy
- Measures temperature from 0 to +50 °C with +/- 0.25 deg C accuracy
- 316L stainless steel probe
- Airflow measurement function
- Measurement units in °F, °C, m/s, km/h, fpm
- Available with or without 2-line 19-digits LCD display
- Outputs include 2 x 4-20mA, 2 x 0-20mA, 2 x 0-5 V, 2 x 0-10 V (user selected)
- 2 relay outputs, 3 amp, 230 volts
- USB mini din cable computer connection
- Optional configuration software and USB cable
- Adjustment certificate
- CE certified
- IP65 rated enclosure
- 24 VAC power supply
