Description

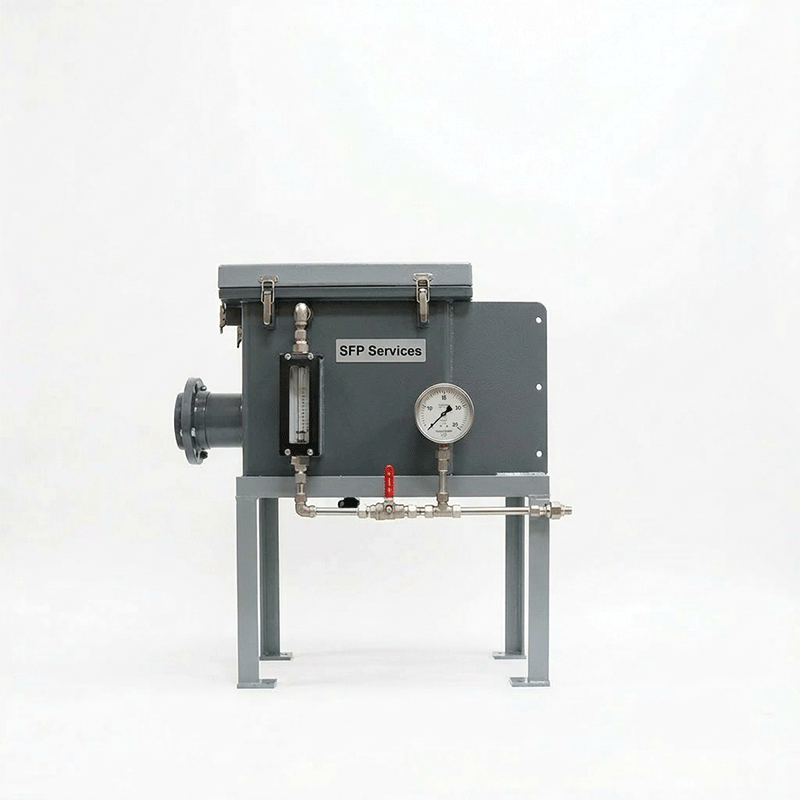

The SFP Services 4100250-F aerosol generator is designed to generate a sodium chloride aerosol which meets the requirements of EN 13274-1 and EN149, when operated at 7 bar [100psig] with 2% w/v Na. Cl. solution. It’s primarily designed for use in conjunction with a low flow sodium flame photometer.
Concentration
- 7mg/m3 @ 7000 l/min
Compressed Air
- 100g Na. Cl./ Liter
- Clean, dry, oil free compressed air, 100 l/m @ 7 bar. [3,5 CFM @ 100 psig]
Dimensions
- 0,8m long x 0,78m high x 0,4m deep
Weight
- 23 Kgs
Finish
- Frame Stand : – Powder Coated mid grey
- Reservoir : – Grey UPVC
Power Supply
- 230 Vac 50/60 Hz 2,5 Amps
Air Supply
- Clean, dry, oil free compressed air.
- 100 l/m @ 7 bar. [ 3,5 CFM @ 100 psig.]
Sodium Chloride Solution
- 20 grams Na. Cl. per Liter Water
- Na. Cl. should be laboratory grade
- Water should be de-mineralized or better
Primary Calibration
- Before dispatch includes, Atomizer nozzle [ free air flow ] Pressure gauge at 100psig and Flow meter at 95 & 100 l/m
